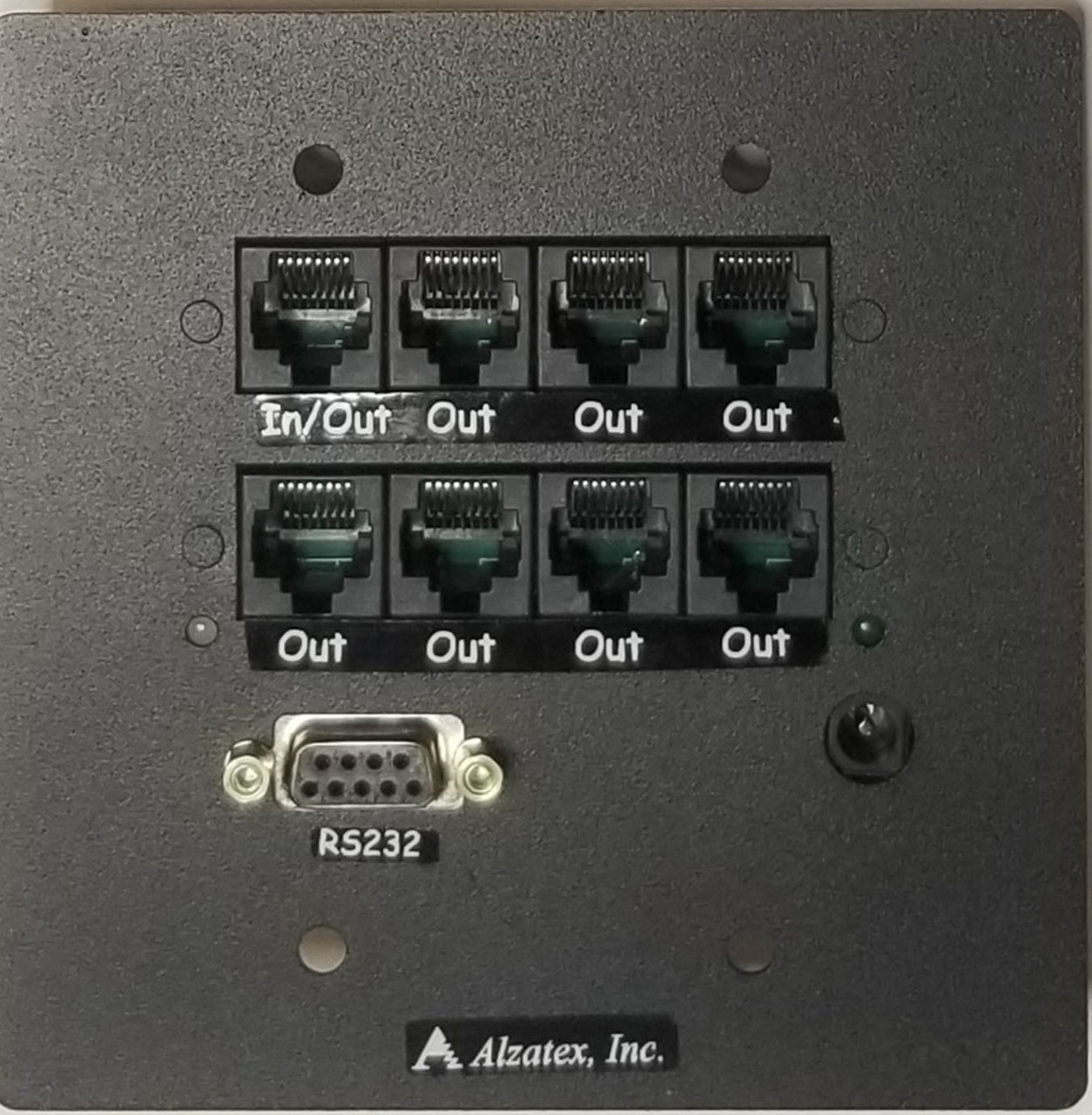

RS422 Extender. Driver module with eight RS422 Drivers using RJ45 jacks. Fits in a double gang electrical box.
Features
Fits into standard double-gang electrical box.Eight RS422 drivers with RJ45 connectors.RS422 input port may be front entry with 7 output ports.RS422 input port may be rear entry with 8 output ports.RS422 Interface drivers to drive multiple Displays from a single power supply.Designed to work with Alzatex, Inc. Powered RS422 data ports.
Specifications
RJ45 jack for RS422 data TX on Blue pair.Power on Green, Brown and Orange pairs.Port 1 RJ45 jack jumper selectable to be IN/OUT with RS422 data RX on Blue pair and TX on Green pair for Bi-directional communication.Power requirements: 11-15VDC.Current drive capability per port: 2 Amps.Current drive capability overall: 9 Amps with a 9 amp power supply connected.Current consumption: 150mA.
Documentation
Cutsheet
