8 RS422 Drivers patch panel mount (kt8x422a)

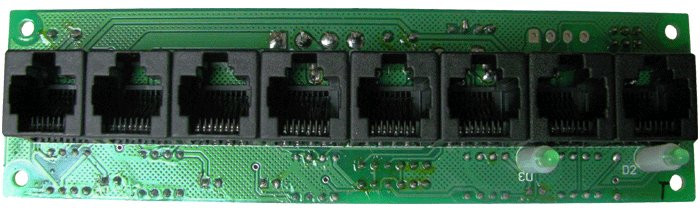

RS422 extender. Driver module with eight RS422 Drivers using RJ45 jacks. Fits in the ktpp_rm1 patch panel chassis.

Features

Fits into the ktpp_rm1 Standard 19 inch 1RU rack panel.8 RS422 drivers with RJ45 connectors.RS422 input port may be front entry with 7 output ports.RS422 input port may be rear entry with 8 output ports.RS422 Interface drivers to drive multiple Displays from a single power supply.Designed to work with Alzatex, Inc. Powered RS422 data ports.

Specifications

RJ45 jack for RS422 data TX on Blue pair.Power on Green, Brown and Orange pairs.Power requirements: 12-15VDC.Current drive capability per port: 2 Amps.Current drive capability overall: 12 Amps.Current consumption: 250mA.

Documentation

Cutsheet
