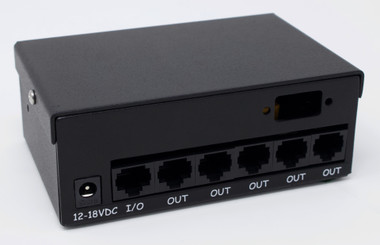

Six port RS422 extender (kt6x422b)

RS422 Extender. Driver module with six RS422 Drivers using RJ45 jacks.

Features

Six RS422 outputs with RJ45 connectors.

RS422 input port may be front entry with 5 output ports.

RS422 input port may be rear entry with 6 output ports.

RS422 Interface drivers to drive multiple Displays from a single power supply.

Designed to work with Alzatex, Inc. Powered RS422 data ports.

Specifications

RJ45 jack for RS422 data TX on Blue pair.

Power on Green, Brown and Orange pairs.

Power requirements: 12-15VDC.

Current drive capability per port: 2 Amps.

Current drive capability overall: 12 Amps.

Current consumption: 250mA.

Documentation

Cutsheet
