RJ11 to RS422 CONVERTER Module (ps422a)

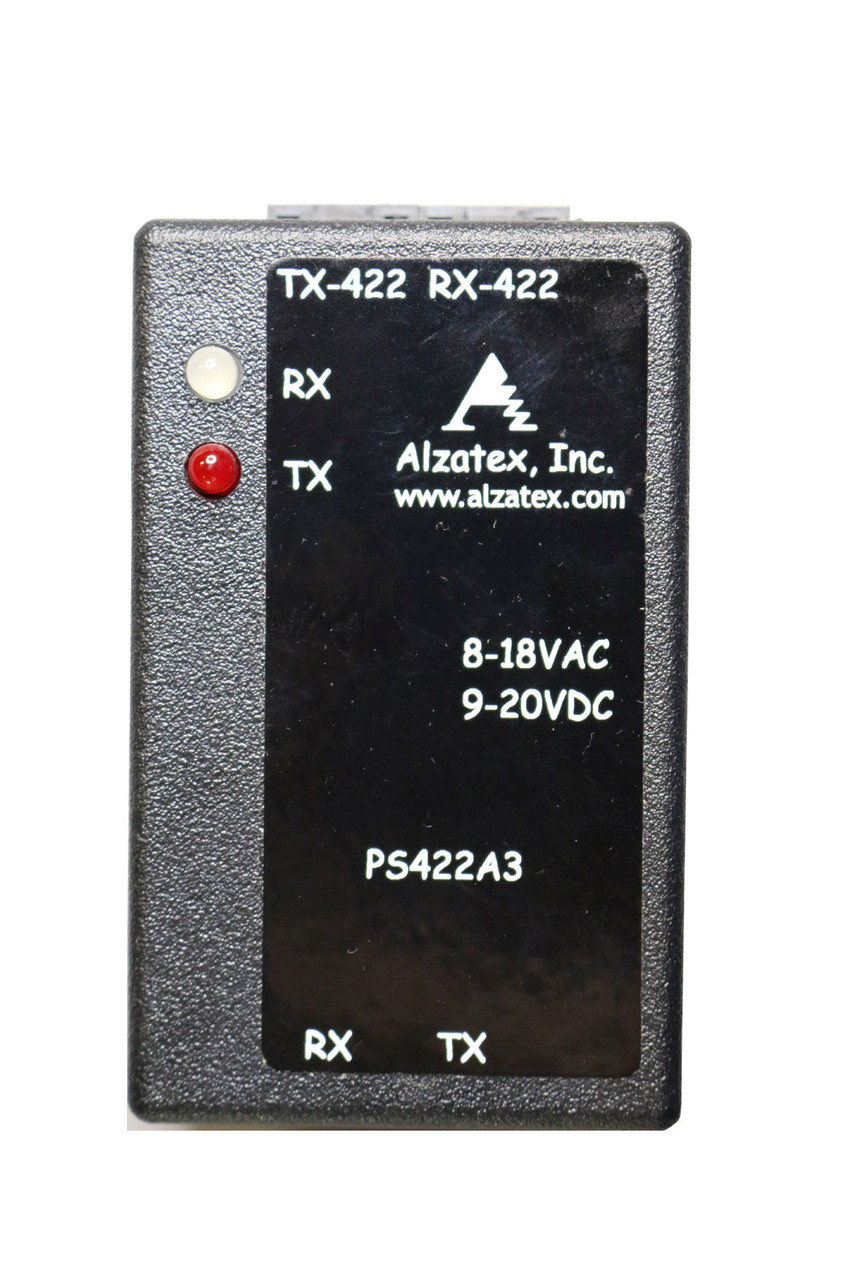

RJ11 to RS422 converter module with 2 RJ11 (6-pin) and 2 RJ45 jacks and power supply connection in a plastic enclosure.

Features

Extend serial data for 1000ft or more over CAT-5 cable.

Converts RJ11 serial data to RS422.

Converts RS422 to RJ11 serial data.

Baud rates up to 115,200 (Baud rate may be limited by distance).

Power from either end. Transmits power and data over CAT-5.

Works with all Alzatex products that have the RJ11 serial data accessory connector.

Specifications

RJ11 jack for data TX on D1, RX on D3.

RJ11 jack for data RX on D3, TX on D1.

RJ45 jack for RS422 data TX on Blue pair, RX on Green pair.

RJ45 jack for RS422 data RX on Blue pair, TX on Green pair.

Power on Brown and Orange pairs.

Power requirements: 10-15VAC or 12-20VDC.
