RS232 to RS422 Converter Module (ps422db9)

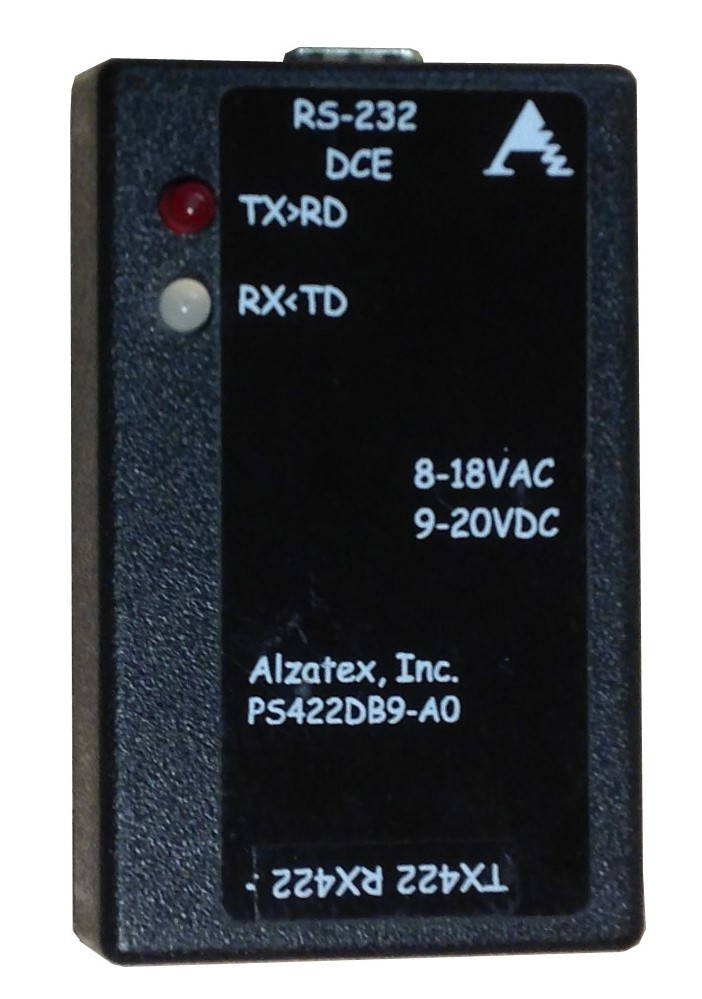

RS232 to RS422 converter module with one DB-9 and 2 RJ45 jacks and power supply connection in a plastic enclosure.

Features

Transmit serial data for 1000ft or more over CAT-5 cable.Converts RS232 to RS422.Converts RS422 to RS232.Baud rates up to 115,200. (Baud rate may be limited by distance).Power from either end. Transmits power and data over CAT-5.Uses the TD, RD and SG signals of the RS232.RTS and CTS are not used.

PS422A2 as a Serial port Extender

Extend serial port data over standard CAT-5 cable.Send serial data to one device or to multiple devices.With additional driver modules, there is no limit on the number of connected devices.Connect to Crestron, AMX, RCI, PC or any device having a serial port.

Specifications

DB9 jack for RS232.RJ45 jack for RS422 data TX on Blue pair, RX on Green pair.RJ45 jack for RS422 data RX on Blue pair, TX on Green pair.Power on Brown and Orange pairs.Power requirements: 10-15VAC or 12-20VDC.

Documentation

Cutsheet
