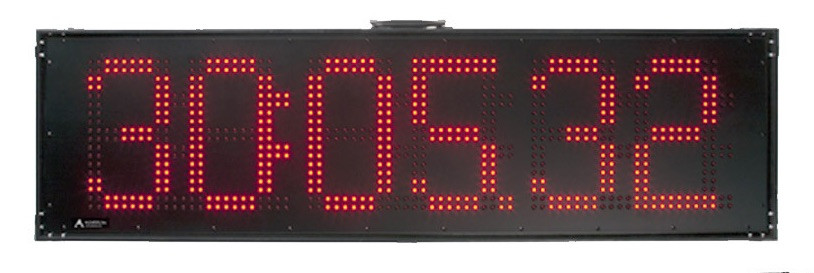

Six-digit Race Clock with 15" high super bright red LED digits for sporting events, with handle, feet, water resistant enclosure, metal frame. Includes integrated keypad and power supply.
Features
Six-digit count up timer settable to Day:Hour:Min, Hour:Min:Sec, or Min:Sec.Hundredths.Six-digit count down timer settable to Day:Hour:Min, Hour:Min:Sec.
Features with external keypad
RF wireless module permits the displays to be controlled remotely.Built-in time-of-day clock displays hours/minutes/seconds in 12/24 hour time.Built-in time-of-day clock displays hours/minutes in 12/24 hour time or minutes/seconds.Connect two or more TimeKeepers™ together. One becomes the timer and the others become Remotes.Can be powered from DC power or from external 12V battery (see Options).
Specifications
Two RJ45 modular connectors for RS422 serial data transmission and reception.Power connector (2.1x5.5mm).Test button for testing and configuration.Connector for optional external battery (see Options).Power requirements: 10-15VAC or 12-20VDC.Current consumption: 640mA maximum per digit.Construction: ABS Plastic enclosure with black powder coated metal front.
Documentation
Cutsheet
