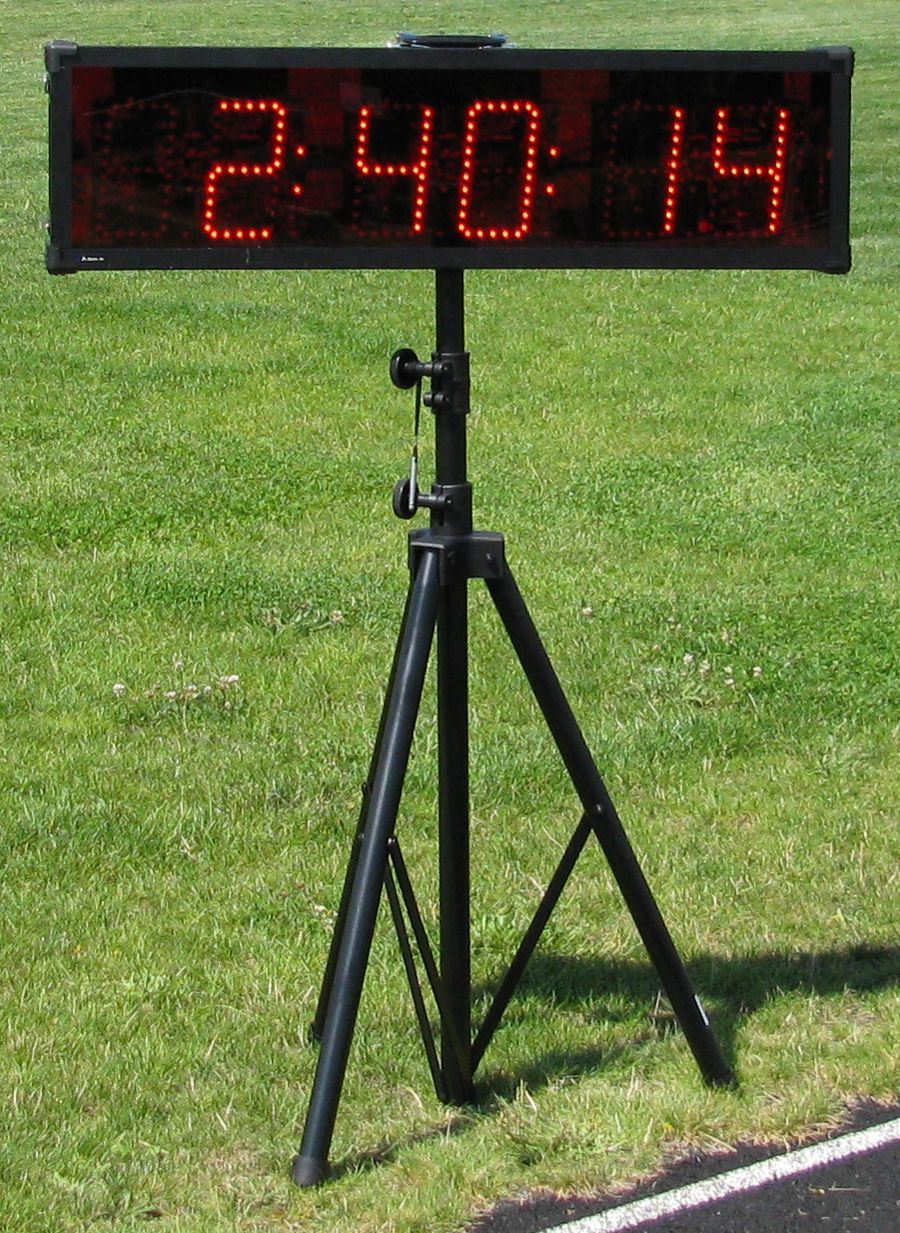

Six-digit Race Clock with 6" high super bright red LED digits for sporting events, with integrated gell cell battery and charger, handle, feet, water resistant enclosure, metal frame. Includes internal keypad and power supply.
Features
Six-digit count up timer settable to Day:Hour:Min, Hour:Min:Sec, or Min:Sec.Hundredths.Six-digit count down timer settable to Day:Hour:Min, Hour:Min:Sec.Easy to use. Press Reset. Turn knob to set the desired time. Press Start.Subsequent timing cycles. Press Reset. The time previously used will be loaded. Press Start.Perfect for interval training and other physical training activities.Mode button to change between time remaining and elapsed time.Interval timer with loud beeper for repeating events.Three User programmable stored presets.Integrated Time of day clock with 12/24 hour mode.Integrated AGM rechargeable battery and charger.If connected to power, the display can be charged while it is being used.
Specifications
Two RJ45 modular connectors for RS422 serial data transmission and reception.Power connector (2.1x5.5mm).Test button for testing and configuration.Power requirements: 10-15VAC or 12-20VDC.Current consumption: 150mA maximum per digit.Construction: Metal enclosure, black powder coated finish with transparent red acrylic front.
Documentation
Cutsheet
