6-Digit, 10" Race Clock Sports Timer (spe1006s)

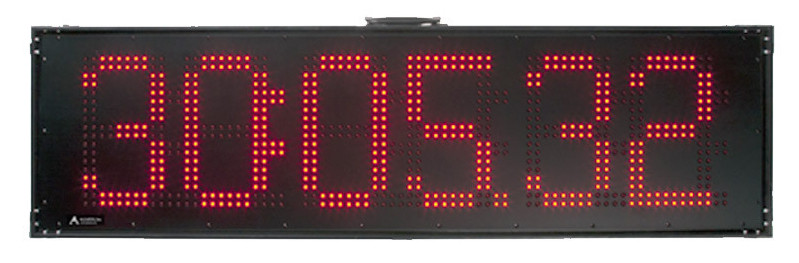

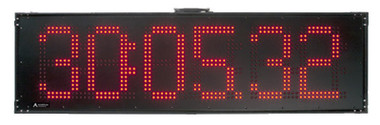

6-Digit Race Clock with 10" high super bright red LED digits for sporting events, with handle, feet, water resistant enclosure, metal frame. Includes integrated keypad, and power supply.

Features

6-digit count up timer settable to Day:Hour:Min, Hour:Min:Sec, or Min:Sec.Hundredths.

6-digit count down timer settable to Day:Hour:Min, Hour:Min:Sec.

Specifications

Two RJ45 modular connectors for RS422 serial data transmission and reception.

Power connector (2.1x5.5mm).

Test buttons for testing and configuration.

Integrated keypad for operationConnector for optional external battery (see Options).

Power requirements: 10-15VAC or 12-20VDC.

Current consumption: 540mA maximum per digit.

Construction: ABS Plastic enclosure, black powder coated metal face plates.

Documentation

Cutsheet
