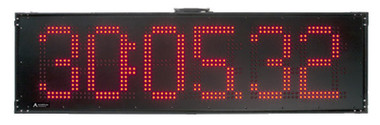

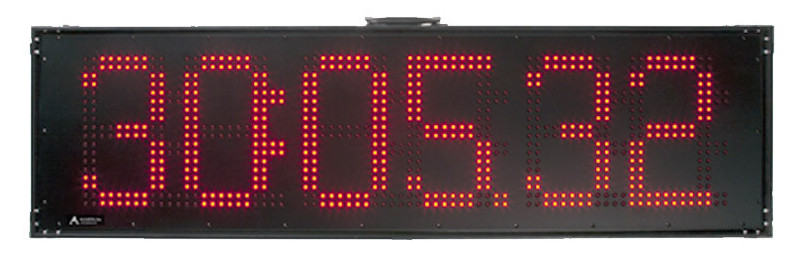

Six Digit 10" Race Clock Sports Timer (spe1006ss)

Six-digit Race Clock with 10" high super bright red LED digits for sporting events. Integrated keypad, and external gell cell battery and charger. Water resistant ABS plastic enclosure with handle.

Features

Scorekeeper mode.Six-digit count up timer settable to Day:Hour:Min, Hour:Min:Sec, or Min:Sec.Hundredths.Six-digit count down timer settable to Day:Hour:Min, Hour:Min:Sec.

Specifications

Two 4-pin waterproof conxall connectors for RS422 serial data transmission and reception.Power connector (2.1x5.5mm).Test button for testing and configuration.Connector for optional external battery (see Options).Integrated KP215ASM keypad for operationPower requirements: 10-15VAC or 12-20VDC.Current consumption: 540mA maximum per digit.Construction: ABS Plastic enclosure, black powder coated metal face plates.

Documentation

Cutsheet
