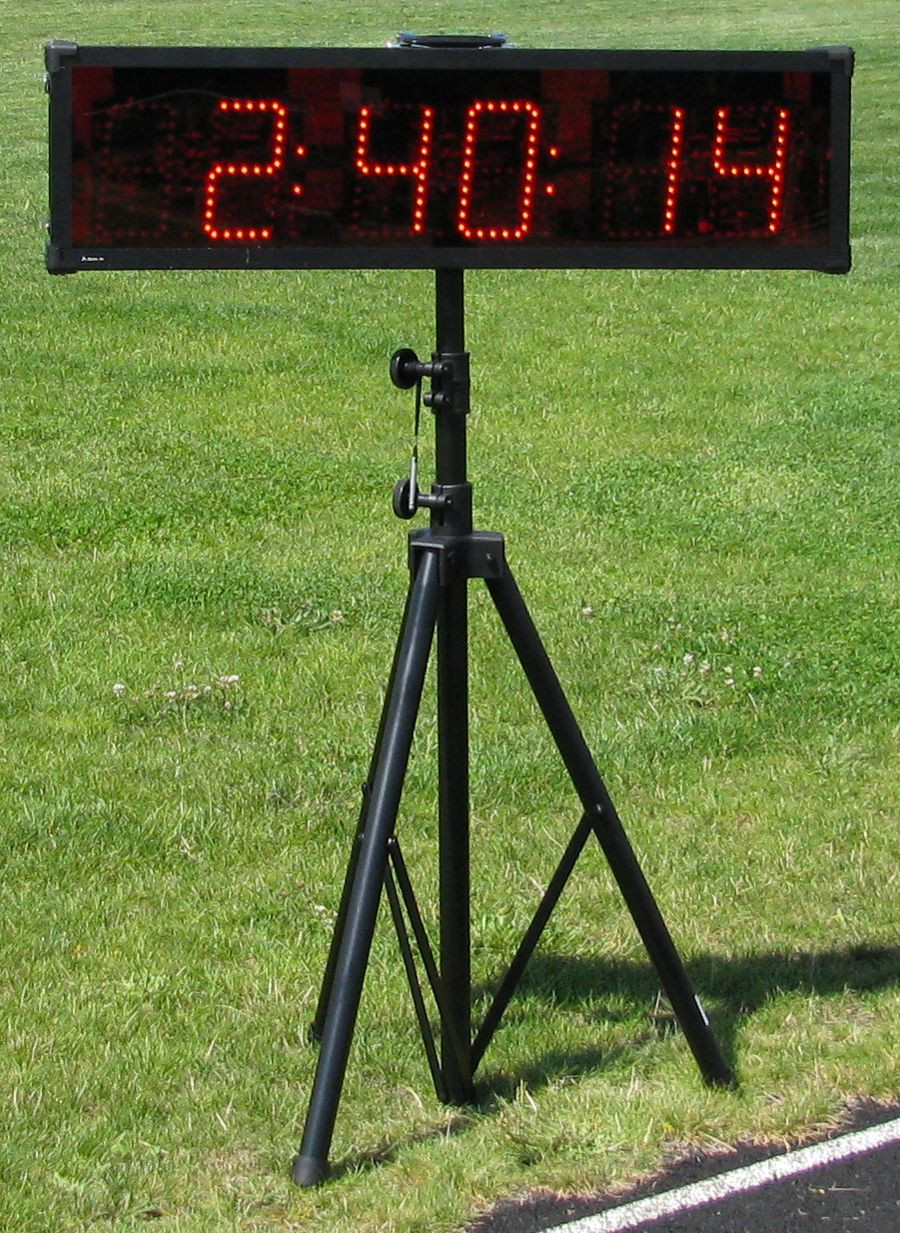

Six Digit 6" Race Clock Sports Timer (spe606x2ss)

Double-sided Six-digit Race Clock with 6" high super bright red LED digits for sporting events. Integrated keypad, gell cell battery and charger. Water resistant ABS plastic enclosure with handle.

Features

Six-digit count up timer settable to Day:Hour:Min, Hour:Min:Sec, or Min:Sec.Hundredths.Six-digit count down timer settable to Day:Hour:Min, Hour:Min:Sec.Perfect for interval training and other physical training activities.Mode button to change between time remaining and elapsed time.Interval timer with loud beeper for repeating events.Three User programmable stored presets.Integrated Time of day clock with 12/24 hour mode.Integrated AGM rechargeable battery and charger.If connected to power, the display can be charged while it is being used.The display may be wall-mounted or hung from hooks.The display comes with handle and feet for portable use.The display includes an integrated tripod mount for attaching the optional tripod.

Specifications

Two 4-pin waterproof conxall connectors for RS422 serial data transmission and reception.Power connector (2.1x5.5mm).Test button for testing and configuration.Integrated KP215ASM keypad for operationPower requirements: 10-15VAC or 12-20VDC.Current consumption: 150mA maximum per digit.Construction: ABS Plastic enclosure, black powder coated metal face plates.

Documentation

Cutsheet
