Product Overview

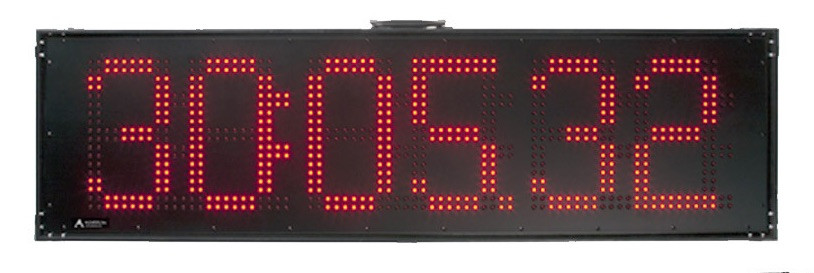

Six-digit Race Clock with 15" high super bright red LED digits for sporting events, with handle, feet, water resistant enclosure, metal frame. Includes integrated keypad and power supply.
Features
- Six-digit count up timer settable to Day:Hour:Min, Hour:Min:Sec, or Min:Sec.Hundredths.Six-digit count down timer settable to Day:Hour:Min, Hour:Min:Sec.
Features with external keypad
- RF wireless module permits the displays to be controlled remotely.Built-in time-of-day clock displays hours/minutes/seconds in 12/24 hour time.Built-in time-of-day clock displays hours/minutes in 12/24 hour time or minutes/seconds.Connect two or more TimeKeepers™ together. One becomes the timer and the others become Remotes.Can be powered from DC power or from external 12V battery (see Options).
Specifications
- Two RJ45 modular connectors for RS422 serial data transmission and reception.Power connector (2.1x5.5mm).Test button for testing and configuration.Connector for optional external battery (see Options).Power requirements: 10-15VAC or 12-20VDC.Current consumption: 640mA maximum per digit.Construction: ABS Plastic enclosure with black powder coated metal front.
Documentation
Warranty Information
One year warranty included. Extended warranties available; details in options.
