6 RS422 Drivers for double gang box (kt6x422c)
Hover over image to zoom
$225.00
SKU:
kt6x422c
Weight:
1.00 LBS
Availability:
Usually in stock.
Shipping:
Calculated at checkout
Product Description

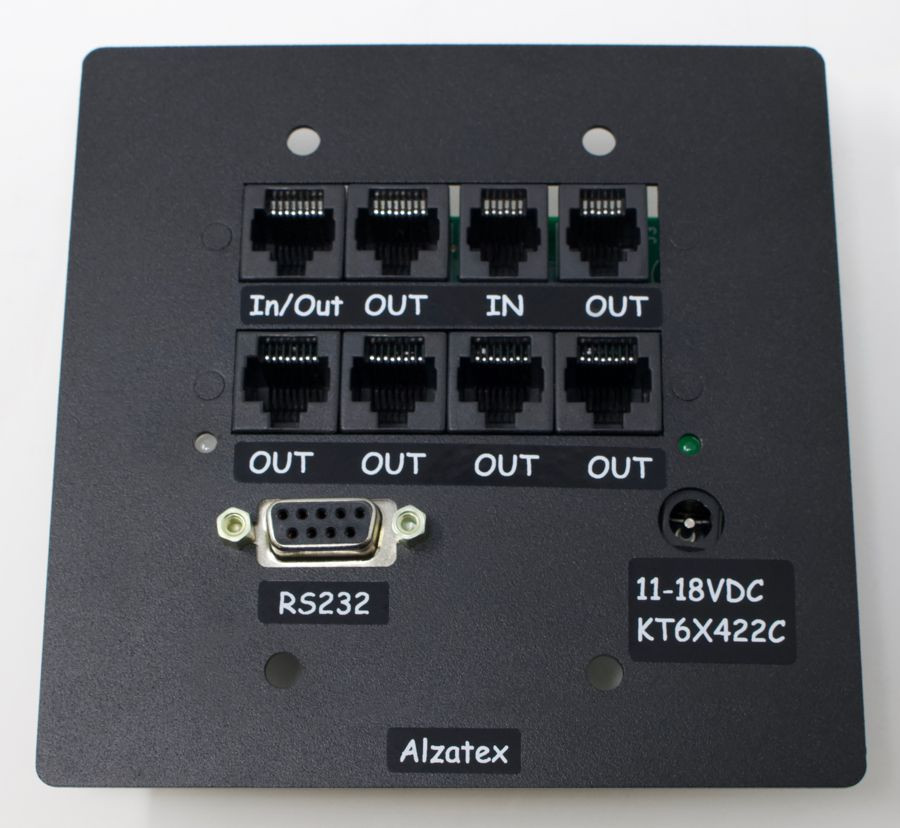

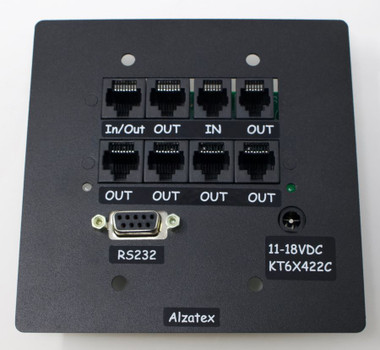

RS422 Extender. Driver module with six RS422 Drivers using RJ45 jacks. Fits in a double gang electrical box.
Features
- Fits into standard double-gang electrical box.6 RS422 drivers with RJ45 connectors.RS422 input port may be front entry with 5 output ports.RS422 input port may be rear entry with 6 output ports.RS422 Interface drivers to drive multiple Displays from a single power supply.Designed to work with Alzatex, Inc. Powered RS422 data ports.
Specifications
- RJ45 jack for RS422 data TX on Blue pair.Power on Green, Brown and Orange pairs.Power requirements: 11-15VDC.Current drive capability per port: 2 Amps.Current drive capability overall: 9 Amps with a 9 amp power supply connected.Current consumption: 150mA.
