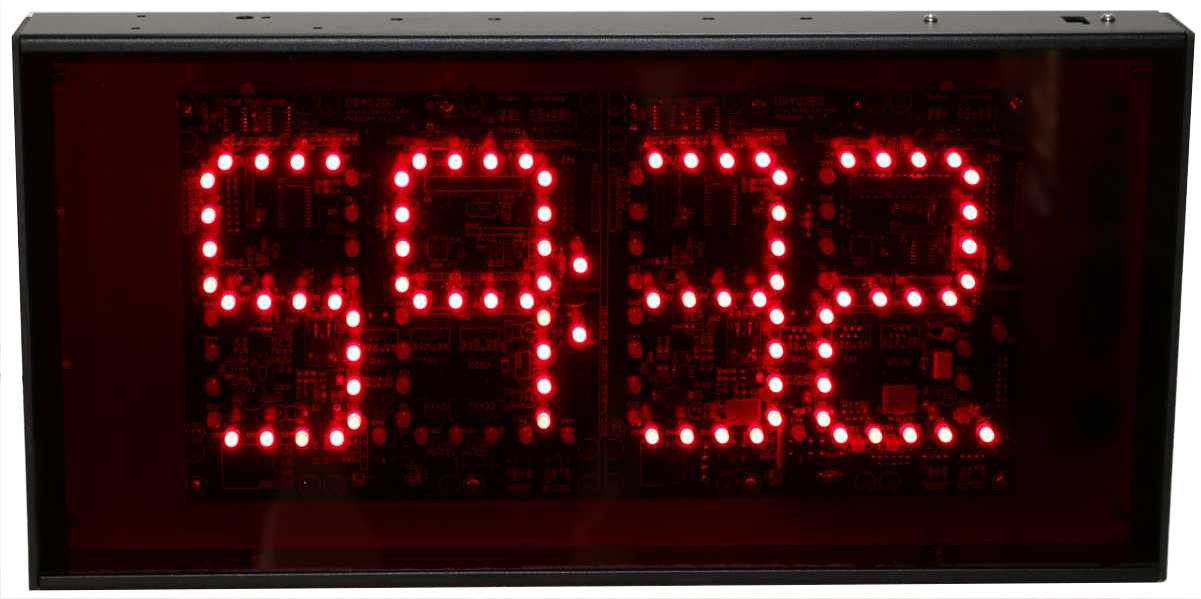

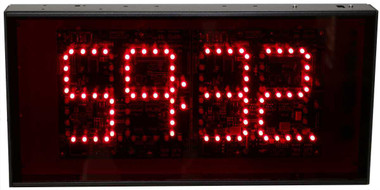

Four-digit LED Display 4" Digits (dsp404b)

Four-Digit Display, 4" High Digits, Red LEDs, Metal Frame.

Features

Convenience is important to most people. This gives you an advantage as Alzatex products are easy to use. The real benefit to you is a very quick learning curve.Count Up Timer with ground closure inputs or optional Start, Stop and Reset buttons.Digital Counter with ground closure inputs or optional Next (Increment), Previous (Decrement) and Reset buttons.Connect two or more TimeKeepers™ together. One becomes the timer, and the others become remote displays.Four-digit count up timer settable to Day:Hour, Hour:Min, Min:Sec or Sec.Hundredths.Four-digit count down timer settable to Day:Hour, Hour:Min or Min:Sec.Power requirements: 10-15VAC or 12-20VDC.Current consumption: 150mA maximum per digit.Construction: Light metal enclosure with transparent red acrylic front.

Features with optional button module

Count Up Timer.Count Down Timer. (0 to 99.59 MM:SS or 0 to 99:59:59 HH:MM:SS).User-programmable stored settings.Built-in time-of-day clock displays hours/minutes in 12/24 hour time or minutes/seconds.

Specifications

Two RJ45 modular connectors for RS422 serial data transmission and reception.RJ11 modular connector for remote Start, Stop and Reset inputs.Power connector (2.1x5.5mm).Test button for testing and configuration.Power requirements: 10-15VAC or 12-20VDC.Current consumption: 140mA maximum per digit.Construction: Metal enclosure, black powder coated finish with transparent red acrylic front.DSP404B Dimensions: 16" x 8" x 2.5".

Documentation

Cutsheet
