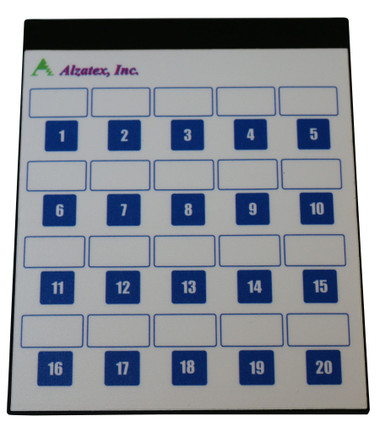

Handheld/Wall Mount Remote Keypad (kp20a)

Remote control module, 20 programable buttons with RJ45 jacks in a metal enclosure.

Features

20 Programmable buttons to perform a variety of functions.

Factory programmed to fit your application.

Serial data output to send commands to a remote display, Timer or other device.

Serial data input to permit daisy chaining multiple keypads/controllers.

Specifications

RJ45 connector Receives RS422 data.

RJ45 connector transmits RS422 data.

Power over CAT-5 cable.

Power requirements: 9-18VAC or 10-24VDC.

Current consumption: 35ma.

Construction: Metal enclosure, black powder coated finish.

Documentation

Cutsheet
