4-Digit LED Display, 6" Digits (dsp604b)

Hover over image to zoom

  • Image 1
9.20 LBS
Usually in stock.
Calculated at checkout

 Product Description

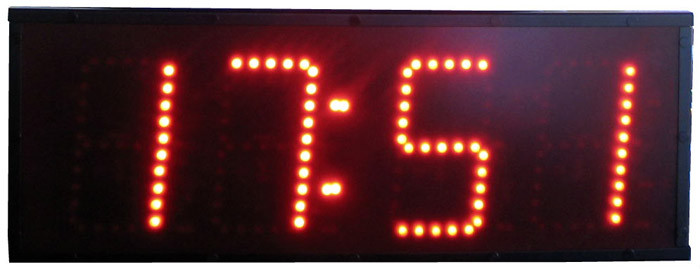

4-Digit Display, 6" High Digits, Super Bright Red LEDs, Metal Frame.


    4-digit count up timer settable to Day:Hour, Hour:Min, Min:Sec or Sec.Hundredths.
    4-digit count down timer settable to Day:Hour, Hour:Min or Min:Sec.


    Two RJ45 modular connectors for RS422 serial data transmission and reception.
    Power connector (2.1x5.5mm).
    Test button for testing and configuration.
    Power requirements: 10-15VAC or 12-20VDC.
    Current consumption: 150mA maximum per digit.
    Construction: Metal enclosure, black powder coated finish with transparent red acrylic front.

Mounting methods

    Standard mounting is two D-rings, one at either end of the display. 1/4-20 nuts on the bottom of the unit for attaching feet or wall bracket. The feet or wall brackets are NOT included and may be ordered separately. The display has holes in the top for adding a handle. The handle is NOT included and may be ordered separately.



 Warranty Information

One year warranty included. Extended warranties available; details in options.
