4-Digit LED Display, 1" Digits (dsp104b)

Four-Digit Display with 1" High Solid-Segment Digits.

Features

Convenience is important to most people. This gives you an advantage as Alzatex products are easy to use. The real benefit to you is a very quick learning curve.

Count Up Timer with ground closure inputs or optional Start, Stop and Reset buttons.

Digital Counter with ground closure inputs or optional Next (Increment), Previous (Decrement) and Reset buttons.

Connect two or more TimeKeepers together.

One becomes the timer, and the others become remote displays.

Four-digit count up timer settable to Day:Hour, Hour:Min, Min:Sec or Sec.Hundredths.

Four-digit count down timer settable to Day:Hour, Hour:Min or Min:Sec.

Display with 1" high solid-segment digits

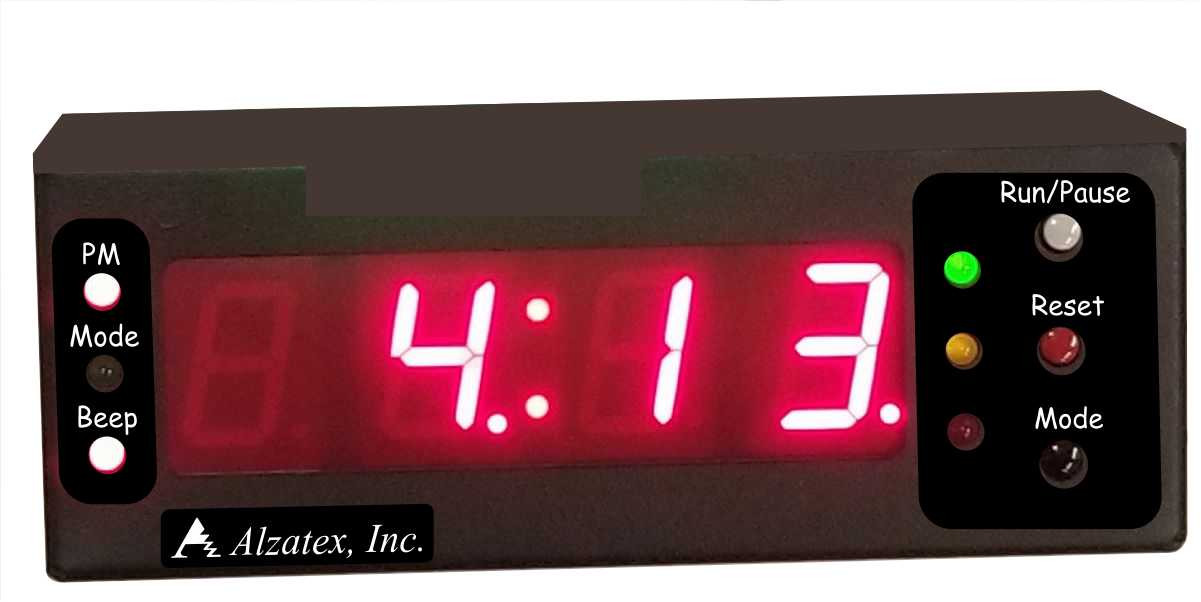

This is a 4-digit Display with 1" high digits.

This Display may be wall-mounted or placed on a table top.

This unit is available with an optional integrated Red-Yellow-Green Indicator Lamp unit.

This electronic digital numerical display unit is excellent to display time remaining, time elapsed or Time-of-Day Clock.

This unit can display production data, tally count, scores or any other numeric data.

It can also display limited alphabetic characters.

Features with optional button module

Count Down Timer. (0 to 99.59 MM:SS or 0 to 99:59 HH:MM).

Four-digit count up timer settable to Day:Hour, Hour:Min, Min:Sec or Sec.Hundredths.

Four-digit count down timer settable to Day:Hour, Hour:Min or Min:Sec.

User-programmable stored settings.

Built-in time-of-day clock displays hours/minutes in 12/24 hour time or minutes/seconds.

Button to turn beeper on/off.

Specifications

Two RJ45 modular connectors for RS422 serial data transmission and reception.

Ground closure inputs to remotely start, stop or reset the timer.

Power connector (2.1x5.5mm).

Test button for testing and configuration.

Power requirements: 10-15VAC or 12-20VDC.

Current consumption: 180mA max.

Construction: Metal enclosure, black powder coated finish.
