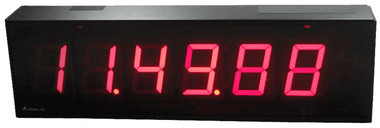

Six-digit LED Display 4" Digits (dsp456b)

Six-Digit Display, 4" High Digits, Solid-Segments, Black Powder Coated Metal.

Features

Six-digit count up timer settable to Day:Hour:Min, Hour:Min:Sec, or Min:Sec.Hundredths.Six-digit count down timer settable to Day:Hour:Min, Hour:Min:Sec.

Specifications

Two RJ45 modular connectors for RS422 serial data transmission and reception.RJ11 modular connector for remote Start, Stop and Reset inputs.Power connector (2.1x5.5mm).Test button for testing and configuration.Power requirements: 10-15VAC or 12-20VDC.Current consumption: 140mA maximum per digit.Construction: Metal enclosure, black powder coated finish with transparent red acrylic front.

Mounting methods

Standard mounting is two D-rings, one at either end of the display.1/4-20 nuts on the bottom of the unit for attaching feet or wall bracket. The feet or wall brackets are NOT included and may be ordered separately.Hole on the bottom of the unit for attaching a tripod. The tripod adapter is NOT included and may be ordered separately.The display has holes in the top for adding a handle. The handle is NOT included and may be ordered separately.

Documentation

Cutsheet
