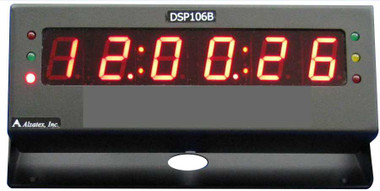

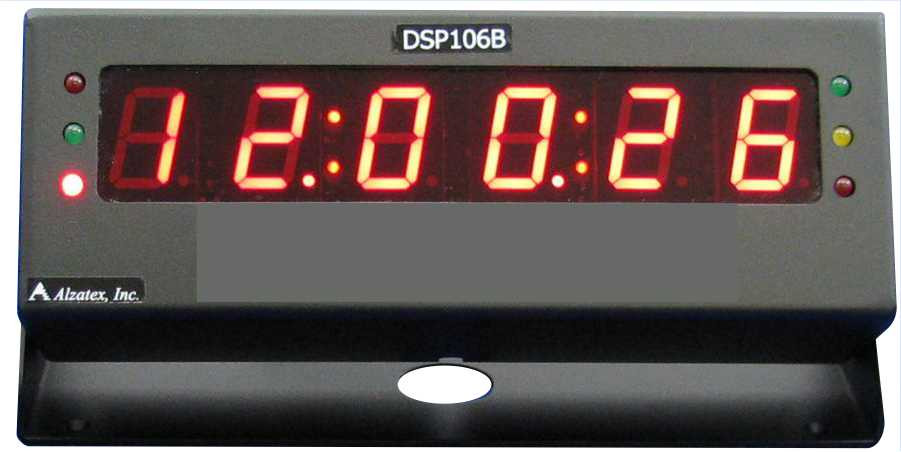

Six-Digit Display with 1" High Solid-Segment Digits with swivel bracket.
Features
Count Up Timer with ground closure inputs or optional Start, Stop and Reset buttons.Digital Counter with ground closure inputs or optional Next (Increment), Previous (Decrement) and Reset buttons.Connect two or more TimeKeepers™ together. One becomes the timer, and the others become remote displays.Six-digit count up timer settable to Day:Hour:Min, Hour:Min:Sec, or Min:Sec.Hundredths.Six-digit count down timer settable to Day:Hour:Min, Hour:Min:Sec.
Specifications
Two RJ45 modular connectors for RS422 serial data transmission and reception.Ground closure inputs to remotely start, stop or reset the timer.Power connector (2.1x5.5mm).Test button for testing and configuration.Power requirements: 10-15VAC or 12-20VDC.Current consumption: 240mA max.Construction: Metal enclosure, black powder coated finish.
