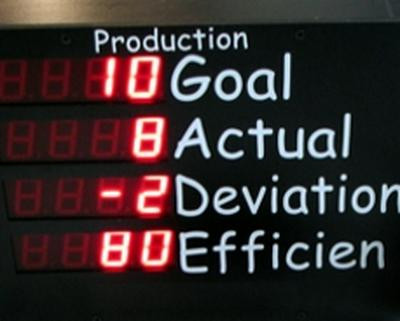

Display with 4 Rows of 4 1" Digits (dsp1016b)

Quad Display with 4 Rows of 4 Digits, 1" High Red Solid-Segment Digits.

Features

Quad Seven segment Display with 1" high LED digits.

This Display may be wall-mounted, hung from hooks.

This unit can display production data, tally count, scores or any other numeric data.

It can also display limited alphabetic characters.

Features with optional equipment

Production Monitoring.

Count Up and Count Down Timer (0 to 99.59 MM:SS or 0 to 99:59:59 HH:MM:SS).

User-programmable stored settings.

Built-in time-of-day clock displays hours/minutes in 12/24 hour time or minutes/seconds.

Button to turn beeper on/off.

Specifications

Two RJ45 modular connectors for RS422 serial data transmission and reception.

Two RJ11 modular connectors for accessories.

RJ11 modular connector for remote Start, Stop and Reset inputs.

Power requirements: 10-18 VAC or 12-24 VDC power.

Current consumption: 500MA maximum per digit.

Construction: Metal enclosure with transparent red acrylic front.

Mounting methods

Standard mounting is 2 key hole slots spaced 9 inches apart for wall mounting. There are screws at either end of the displays where D-Rings can be added. D-Rings are NOT included and may be ordered separately. There is one 1/4-20 nut on the bottom of the unit for attaching camera style tripod.

Documentation

Cutsheet
