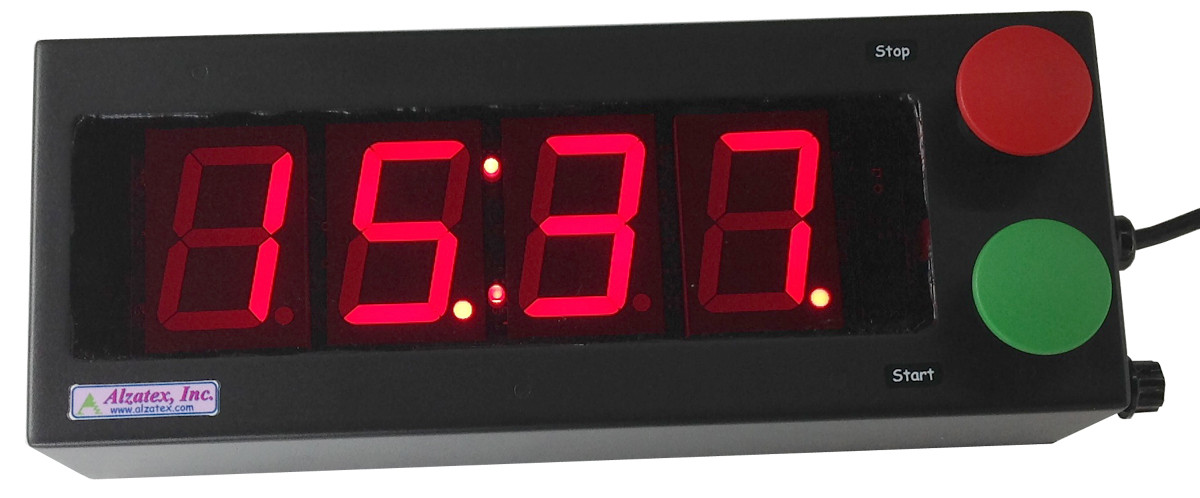

Four-Digit Display, 2-1/3" High Digits, Solid-Segments, Integrated Count Down Timer with 2 Large Mushroom Buttons in NEMA4X Enclosure.
Features
Easy to use. Press Reset. Turn knob to set the desired time. Press Start.Press Stop to stop the timer.Four-digit LED seven-segment Display with 2-1/3" inch high digits.Count down timer settable to Hour:Min or Min:Sec.Made of ruggedized aluminum construction.
Specifications
One Mushroom Button resets and starts the timer.One Mushroom Button stops the timer.Serial data RJ11 connectors for accessories.Display has RS422 output with RJ45 connector for accessories.Construction: Metal enclosure, black powder coated finish.Power requirements: 10-18 VAC or 12-24 VDC power.Current consumption: 300ma.DSP264BD Dimensions: 13" x 5" x 3".
Documentation
Cutsheet
