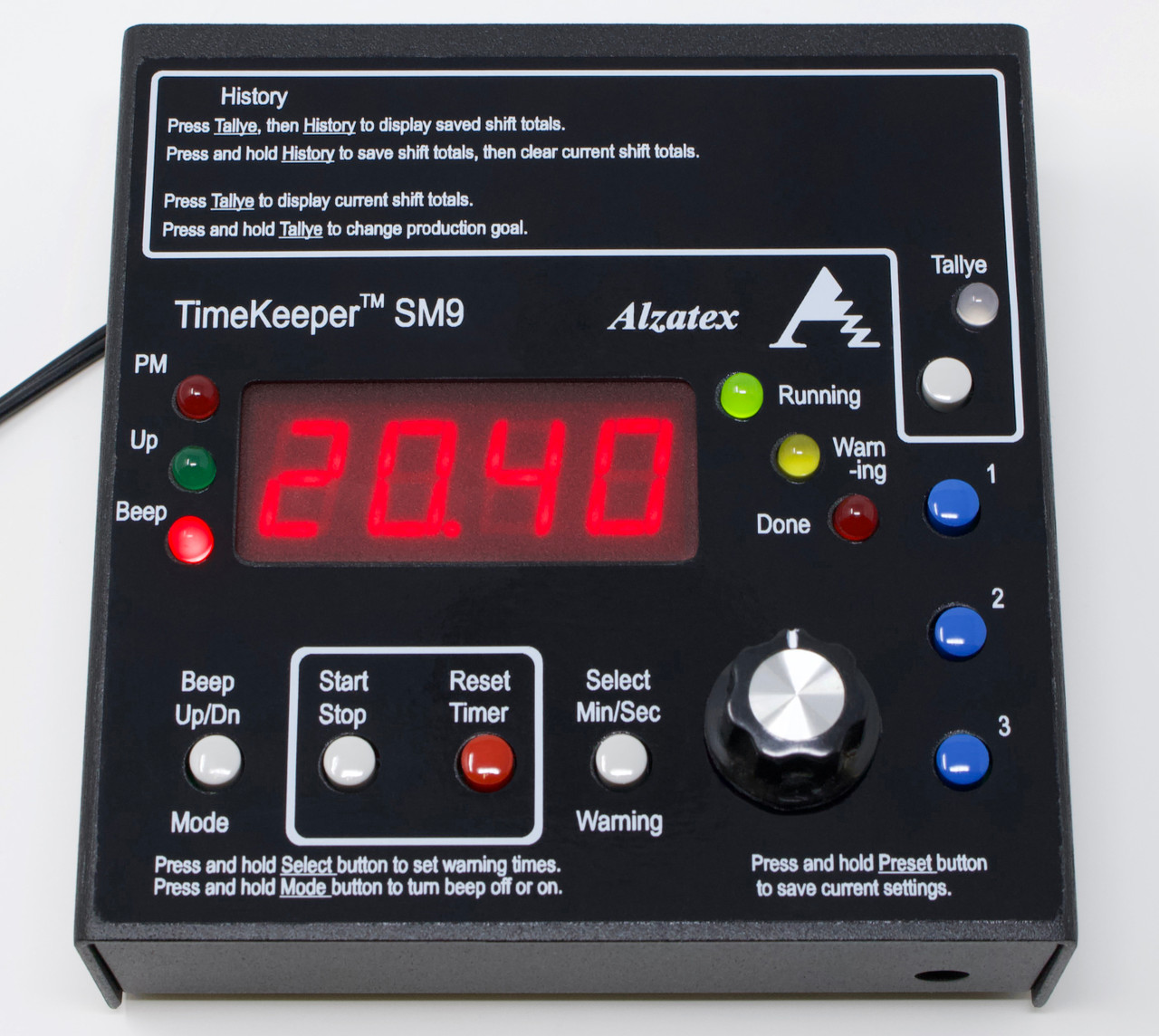

Production Monitor TAKT time Controller (tmr223b9_prod1)

Surface Mount Count Up/Down Timer with production count/total tracking, 4-digit LED Display and Red-Yellow-Green LED's with remote Start/Stop/Reset, and TAKT time Display.

Features

Display running or static goal.Keep track of actual count.

Display Deviation (Goal/Actual).

Display Efficiency Percent (Goal/Deviation*100).

Set any TAKT Time from 1 second to 99 hours.

Display the actual time required to build an item.

Set warning times to operate Green, Yellow and/or Red Andon indicators.

Store up to 3 complete setups for different products on the same line.

Add optional andon lights to indicate ahead of or behind the target times or target counts.

Add optional beepers and/or warning indicators to alert workers and or supervisors.

Specifications

Two RJ11 modular connectors for accessories.

RJ11 modular connector for remote Start, Stop and Reset inputs.

Construction: Metal enclosure, black powder coated finish.

Power requirements: 10-18 VAC or 12-24 VDC power.

Current consumption: 100ma.

Documentation

Cutsheet
