Production Monitor with TAKT Timer (alzp001a)

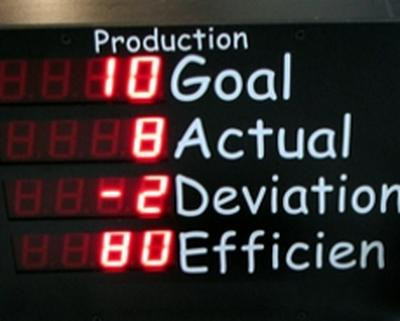

Production monitoring system featuring TAKT Timer/Counter and Quad Display with 1" high digits in a common enclosure. Displays Target, Actual, Deviation and Efficiency.

Features

Easy to use!

Press Reset. Turn knob to set the desired time.

Press Start. Subsequent timing cycles.

Press Reset. The time previously used will be loaded.

Press Start. Actual time to build elapsed Timer.

TAKT Timer to set the pace.

Green, Yellow and Red warning indicators have preprogrammed default settings, or may be custom programmed by user.

Four-digit LED seven-segment Display with 1" high digits.

Count up timer actual timer displays Hour:Min or Min:Sec. TAKT timer settable to Hour:Min or Min:Sec.

Displays may be custom configured to show Target, Actual, Deviation Efficiency, TAKT time, Actual Time and other parameters.

Made of ruggedized aluminum construction.

Beeper provides audible sound when TAKT time expires.

Button to turn beeper on/off.

Specifications

Serial data RJ11 connectors for accessories.

Display has RS422 output with RJ45 connector for accessories.

Construction: Metal enclosure, black powder coated finish.

Power requirements: 10-18 VAC or 12-24 VDC power.

Current consumption: 600ma.

TMR223B9_PROD1 Dimensions: 4.5" x 4.5" x 1.25".

KP04BOC_SM Dimensions: 3.5" x 1.75" x 1".

Four DSP104B displays in a common enclosure.

DSP1016B0 Labels: Target, Actual, Deviation, Efficiency.

DSP1016B0 Dimensions: 10" x 8" x 2.5".

Documentation

Cutsheet
