Vote Result Display (vot3vn04b_grb)

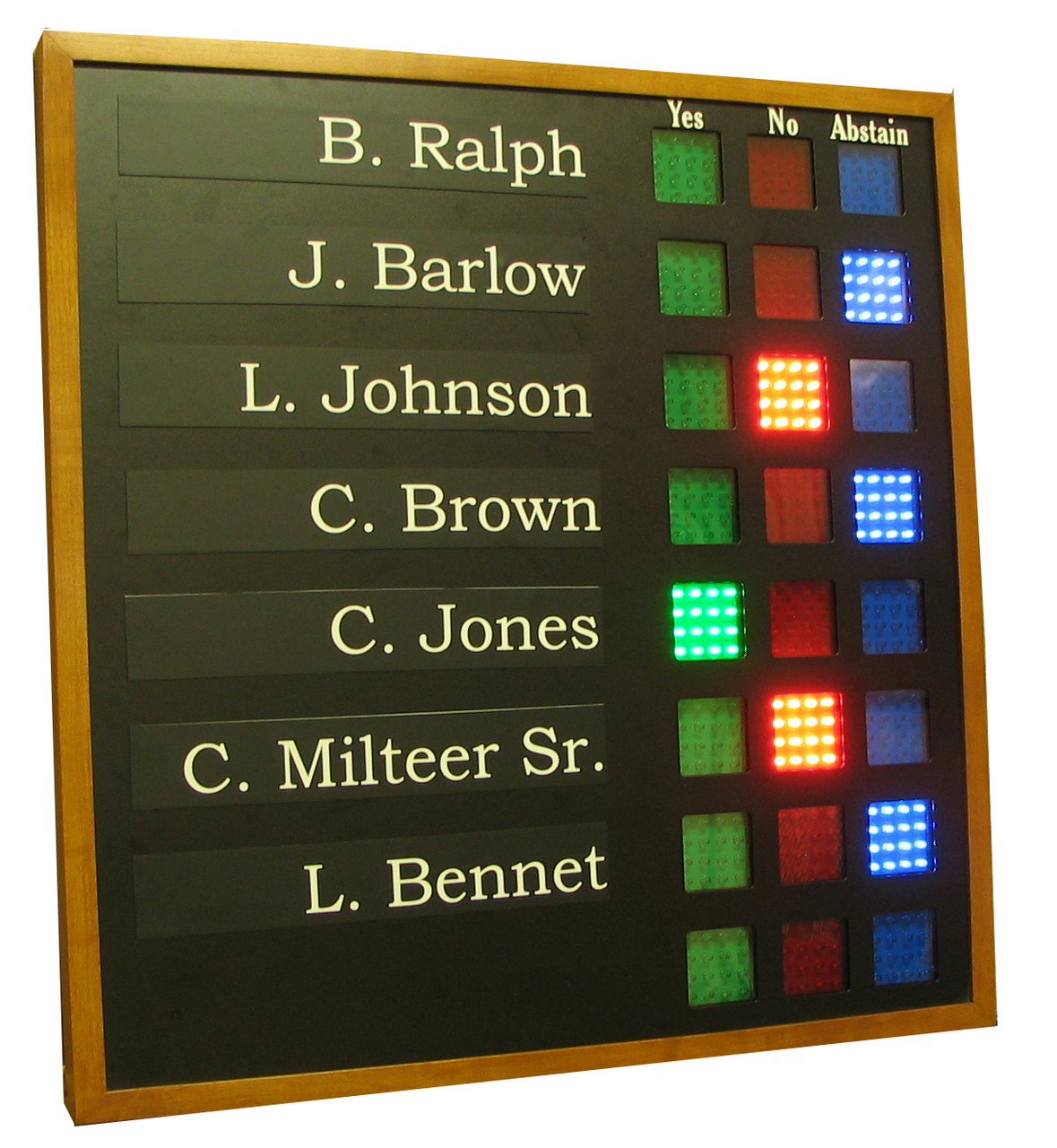

Vote result Display with three-indicator 2" x 2" LED clusters (Green=Yes, Red=No, Blue=Abstain) Oak trim.

Features

Large 2" x 2" Green LED cluster for Yes.

Large 2" x 2" Red LED cluster for No.

Large 2" x 2" Blue LED cluster for Abstain.

Expandable for up to 64 voting members.

Metal Enclosure with oak trim.

Optional custom finish available to suit your decor.

Specifications

Construction: Metal enclosure, black powder coated finish with oak trim.

Power requirements: 12-15VDC.

Current consumption: 100mA per vote results line.

VOT3VN04B_GRB Dimensions: 25.5" x 12.5" x 2.5".

VOT3VN04E_GRB Dimensions: 25.5" x 12" x 2.5".

VOT3VN01E_GRB Dimensions: 25.5" x 3" x 2.5".

VOT3T4X3E_GRB Dimensions: 25.5" x 12" x 2.5".

Electronic Voting Wall Display

The vote results wall display shows how each voting member voted.

All wall displays require the VOT3VN04B_GRB base unit.

The VOT3VN04B_GRB base unit displays the vote results for 4 voting members.

Up to 16 voting members may be displayed on each vote results wall display.

If you have more than 16 voting members an additional base unit is required.

Stand alone Electronic Vote Totals Wall Display

The vote totals display shows only the vote results totals.

This display does not indicate how each member voted.

The VOT3T4X3B_GRB wall display shows the vote totals.

Documentation

Cutsheet
