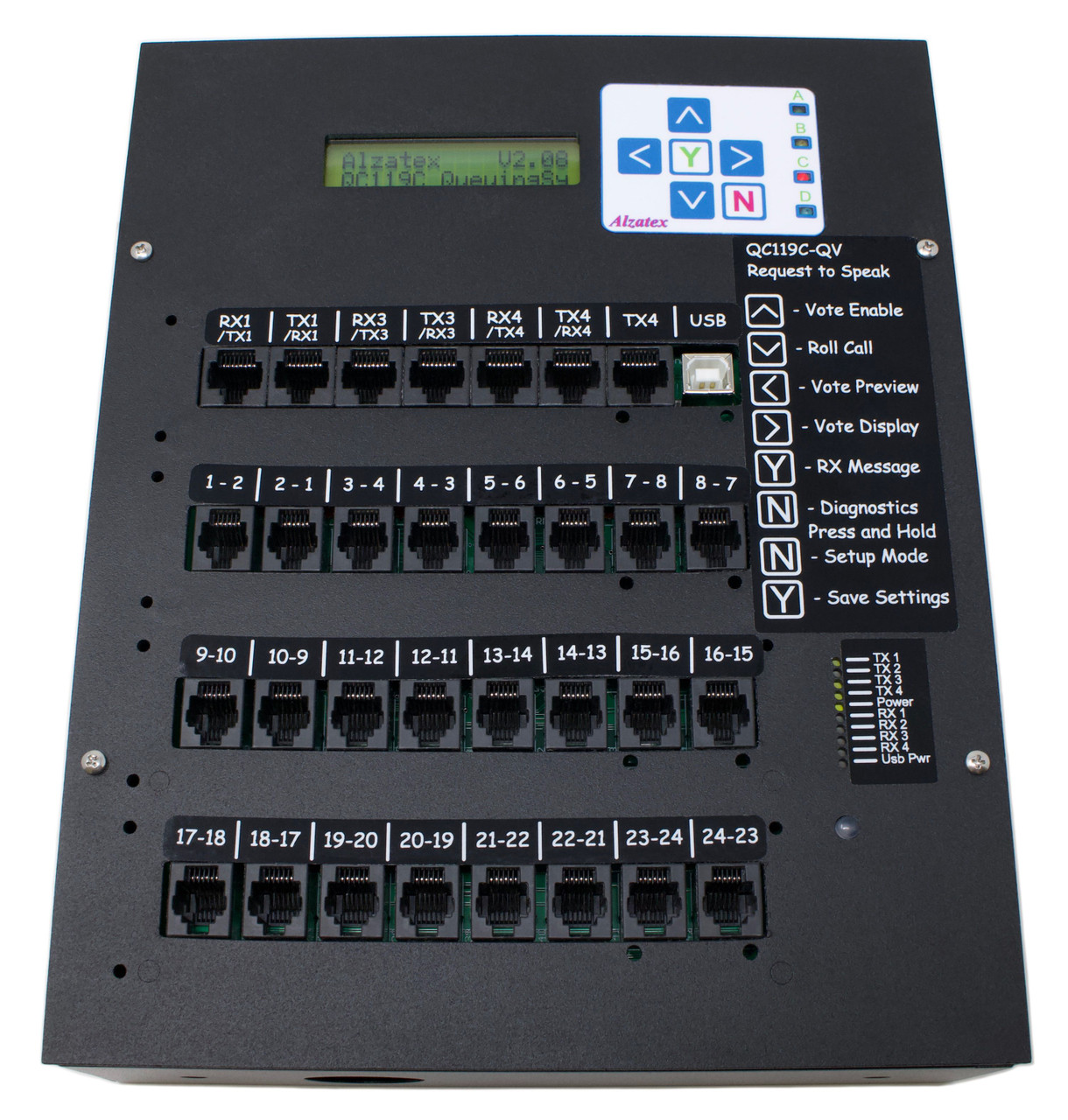

Queuing/Voting 24 Station Controller (qc119c)

Twenty Station Queuing/voting station Controller.

Features

Request to speak and Talk button features.Electronic voting for Yes, No and Abstain.Roll call feature to enable desired stations.Output to drive optional vote results display.Status LEDs to show the status of all communication ports.Easy installation using phone cords and CAT5 cables.Optional microphone mute control option.

Specifications

Each QC119C supports up to 24 stations.Up to three QC119C hubs may be connected together for systems of up to 64 stations.Uses phone cords to connect the queuing stations.Uses CAT-5 cables to connect the DC417A6 master controller and accessory devices.Power over phone cord for the queuing stations.Power over CAT-5 for the master controller and accessory devices.

Installation

LCD display to show system status.Six button keypad for setup and testing.Input and output port for connecting DC417A6 controller.Input and output ports for accessories.QUE119C Dimensions: 10" x 8" x 2.5".

Documentation

Cutsheet
