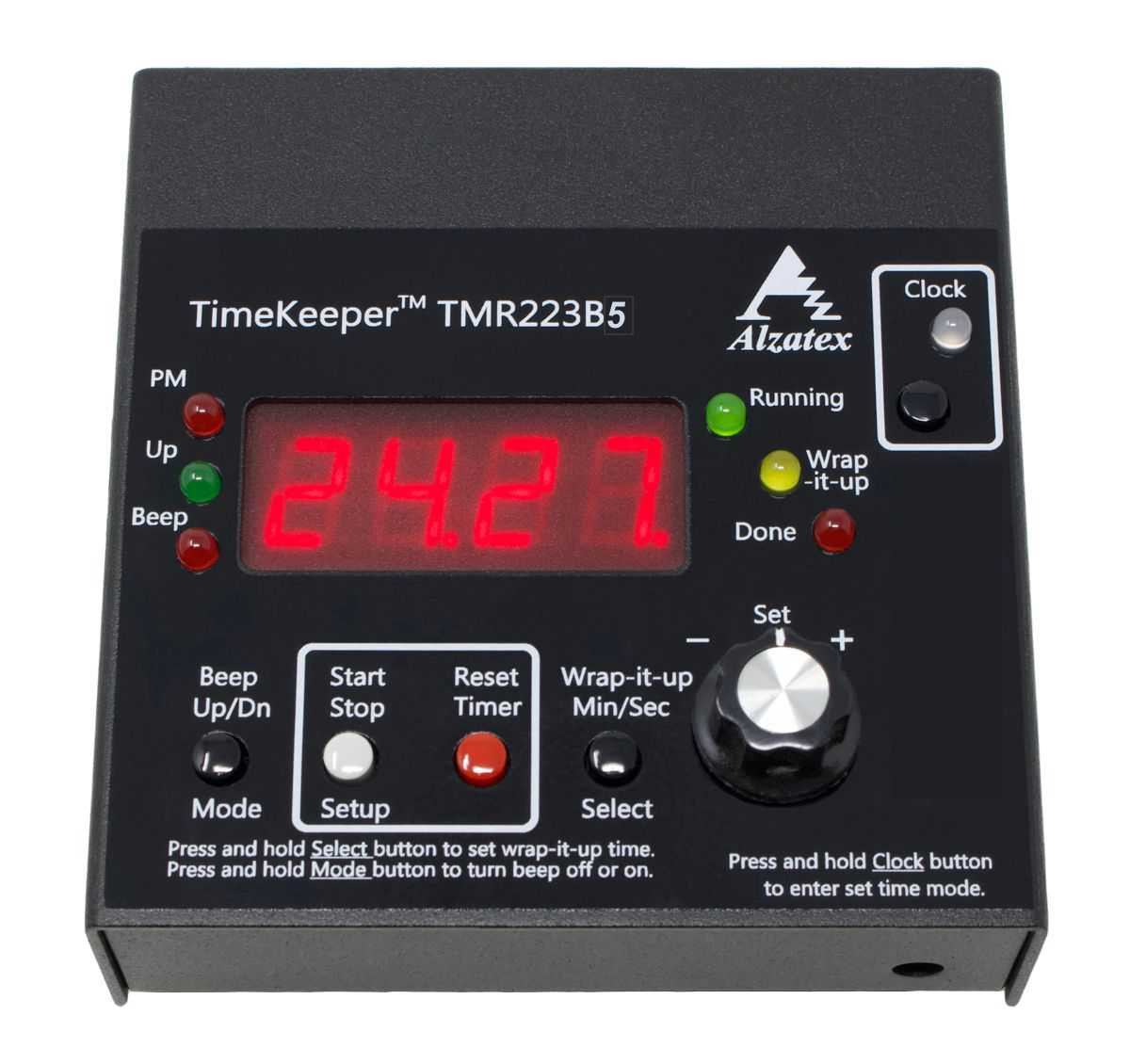

Surface-mount Count Up/Down Timer with time-of-day clock, 4-digit LED Display and Red-Yellow-Green LEDs.
Features
Easy to use. Press Reset. Turn knob to set the desired time. Press Start.Subsequent timing cycles. Press Reset. The time previously used will be loaded. Press Start.Count Up elapsed Timer.Count Down time remaining Timer.0-99.59 MM:SS or 0-99:59 HH:MM.User-programmable Green, Yellow and Red warning Indicators.The Select button selects between setting hours, minutes and seconds.The Mode button selects between Count Up and Count Down modes. You may change between Count Up and Count Down modes while the timer is running. In Count Down mode, the timer stops when it reaches zero. In Count Up mode, the timer keeps running when the preset time is reached.Four-digit LED seven-segment Display with 0.56" high digits.Connect two or more TimeKeepers together. One becomes the timer, and the others become remote displays.Four-digit count up timer settable to Hour:Min or Min:Sec.Four-digit count down timer settable to Hour:Min or Min:Sec.Made of ruggedized aluminum construction.
Specifications
Two RJ45 modular connectors for accessories.RJ11 modular connector for remote Start, Stop and Reset inputs.May be powered using 3-AA batteries or AC power.Ground closure 200mA output for optional beeper. (not included).Ground closure input.Construction: Metal enclosure, black powder coated finish.Power requirements: 10-18 VAC or 12-24 VDC power.Current consumption: 100ma.
Documentation
Cutsheet
