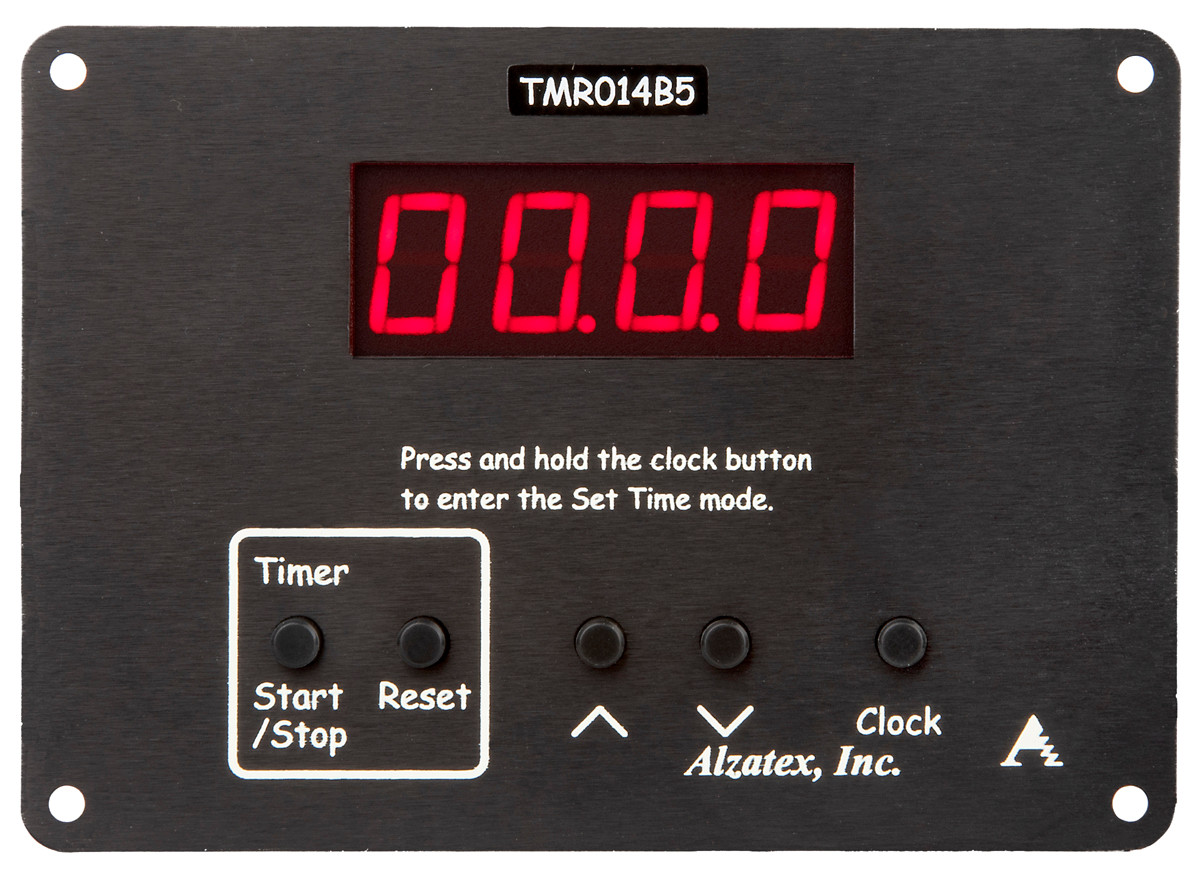

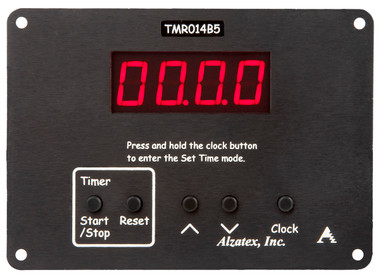

Flush-mount Count Up/Down Timer with built-in time-of-day clock, Black anodized AL, Flush-mount.
Features
Count Down Timer. (0 to 99.59 MM:SS).Count Up Timer.Built-in time-of-day Clock displays hours/minutes in 12/24 hour time or minutes/seconds.Press Reset to select timer mode.Press the up/down buttons to set desired time to the nearest minute.Press the Start/Stop button to start the timer.Four-digit LED seven-segment Display with 0.56" high digits.Made of ruggedized aluminum construction.
Specifications
Ground closure 800mA output for optional beeper. (not included).Ground closure 800mA output indicates timer running state.Ground closure outputs can drive resistive or inductive loads.Power requirements: 6-15VAC or 8-20VDC.Current consumption: 100ma.Construction: Metal flush mount plate, black powder coated finish.
Documentation
Cutsheet
