Last Accident Display 4" Digits (dsp418a_la)

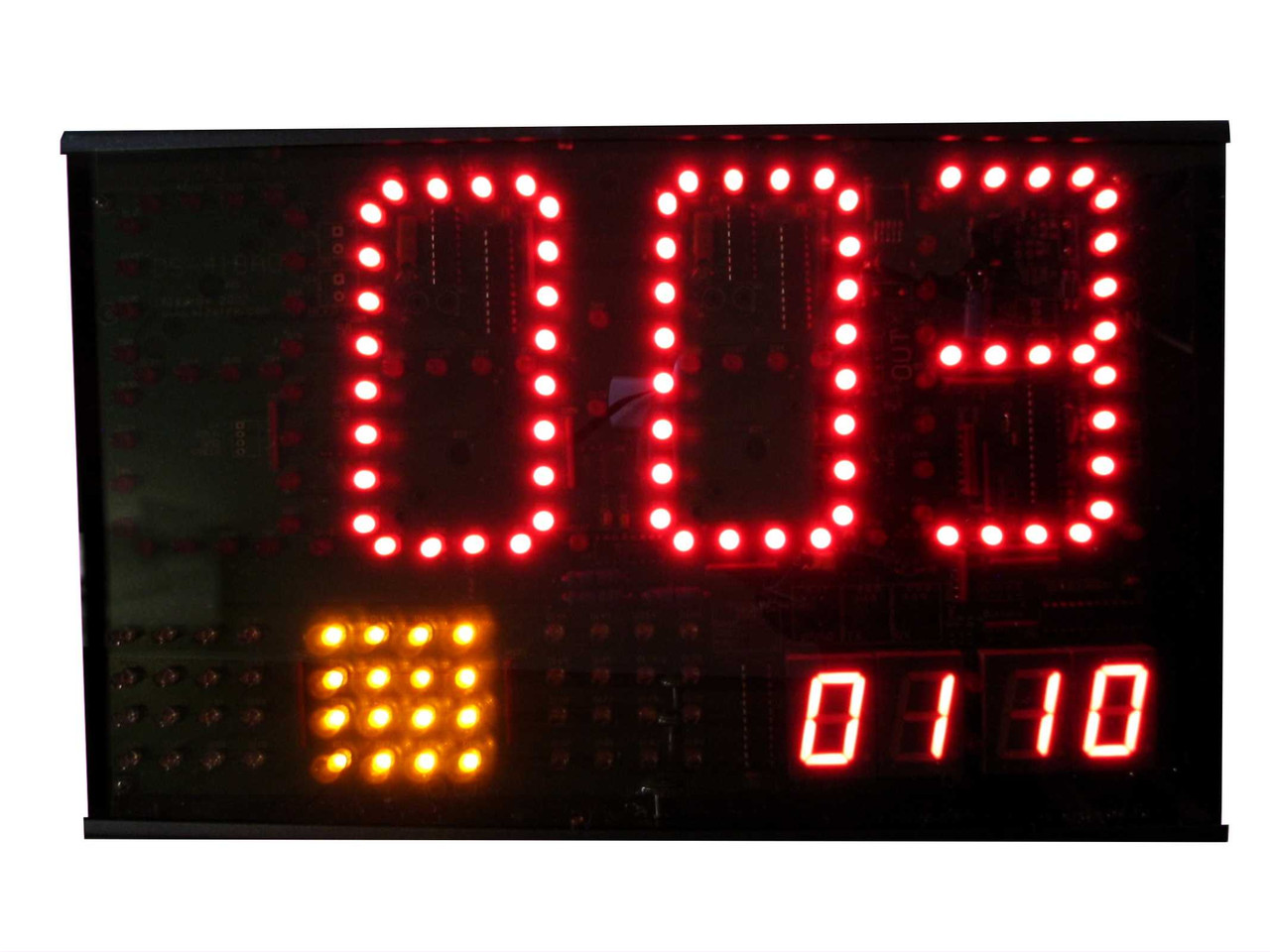

Four-Digit Display with 4" High Digits and Red LEDs, Four-Digit Display with 1" High Digits, 2"x2" LED Clusters, in Common Metal Enclosure for Display of “Days Since Last Accident”.

Features

Four-digit Large 4" LED Display shows days since last accident.Four-digit Display with 1" high digits shows the time-of-day Clock in hours and minutes.Green-Yellow-Red Display with 2"x2" LED clusters shows severity of the most recent accident.Remote button plate to setup the time of day and the days since last accident.

Specifications

Two RJ45 modular connectors for RS422 serial data transmission and reception.RJ11 modular connector for remote Start, Stop and Reset inputs.Power connector (2.1x5.5mm).Test button for testing and configuration.Power requirements: 10-15VAC or 12-20VDC.Current consumption: 100mA maximum per digit.Construction: Metal enclosure, black powder coated finish with transparent red acrylic front.

Documentation

Cutsheet
