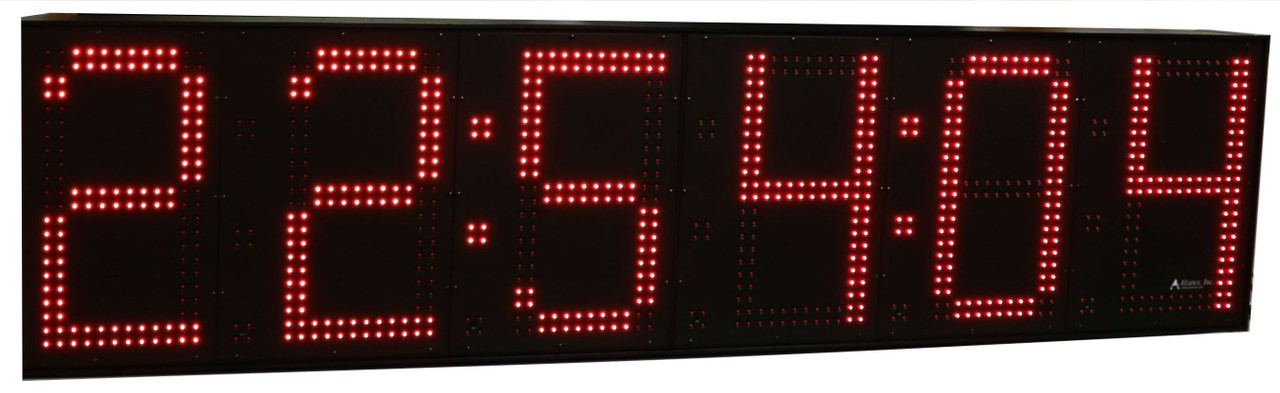

Six-digit LED Display 15" Digits (dsp1506b)

Six-Digit Display, 15" High Digits, Super Bright Red LEDs, Metal Frame.

Features

Six-digit count up timer settable to Day:Hour:Min, Hour:Min:Sec, or Min:Sec.Hundredths.Six-digit count down timer settable to Day:Hour:Min, Hour:Min:Sec.

Features with external keypad

Built-in time-of-day clock displays hours/minutes/seconds in 12/24 hour time.History memory records the 64 most recent events.Connect two or more TimeKeepers™ together. One becomes the timer and the others become Remotes.Can be powered from DC power or from external 12V battery (see Options).

Specifications

Two RJ45 modular connectors for RS422 serial data transmission and reception.Power connector (2.1x5.5mm).Test button for testing and configuration.Connector for optional external battery (see Options).Power requirements: 10-15VAC or 12-20VDC.Current consumption: 640mA maximum per digit.Construction: ABS Plastic enclosure with black powder coated metal front.

Documentation

Cutsheet
