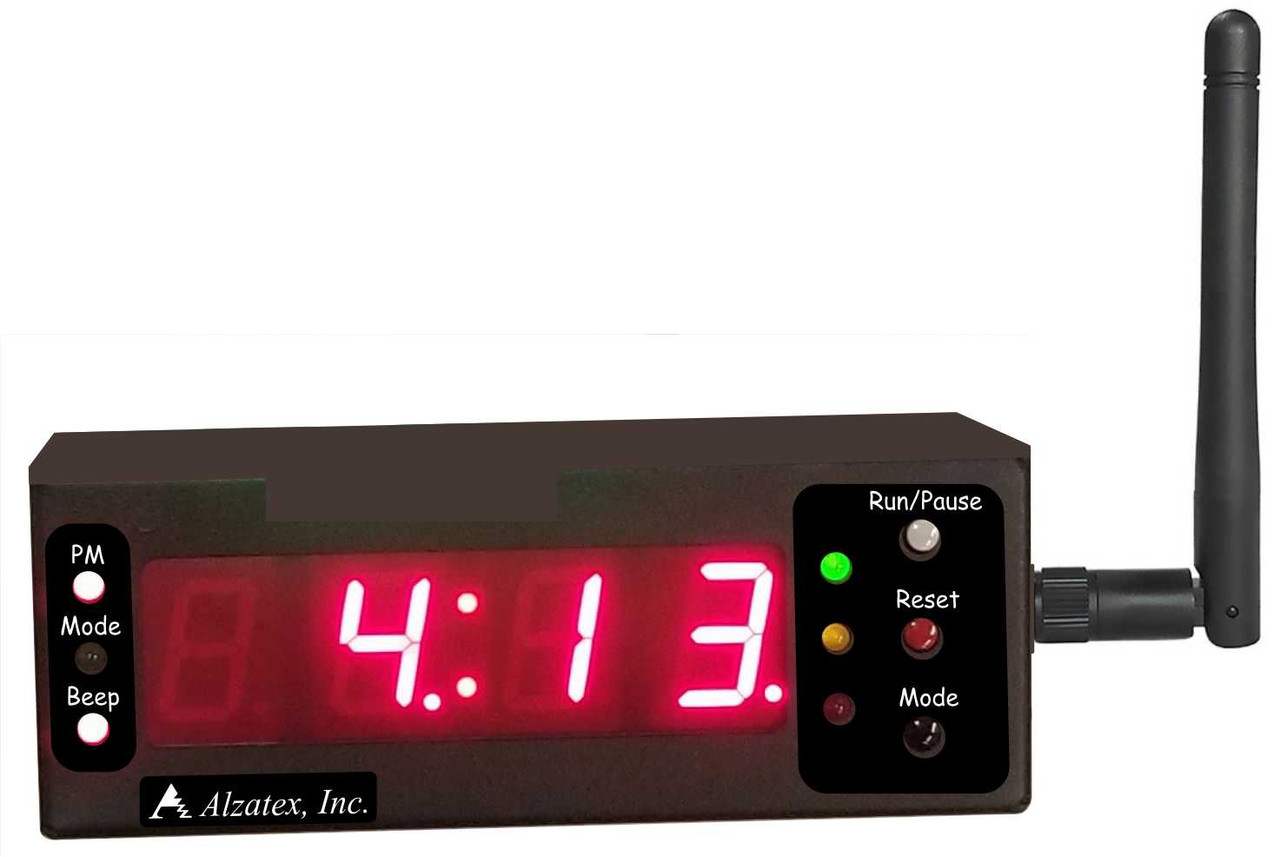

Wireless LED 1" Digit Display (dsp104b_rf2)

Wireless 2.4GHz Four-Digit Display, 1" High Digits, Solid-Segments, Metal Frame.

Features

Count Up Timer with ground closure inputs or optional Start, Stop and Reset buttons.Digital Counter with ground closure inputs or optional Next (Increment), Previous (Decrement) and Reset buttons.Connect two or more TimeKeepers™ together. One becomes the timer, and the others become remote displays.Four-digit count up timer settable to Day:Hour, Hour:Min, Min:Sec or Sec.Hundredths.Four-digit count down timer settable to Day:Hour, Hour:Min or Min:Sec.

Specifications

Two RJ45 modular connectors for RS422 serial data transmission and reception.RJ11 modular connector for remote Start, Stop and Reset inputs.Power connector (2.1x5.5mm).Test button for testing and configuration.Power requirements: 10-15VAC or 12-20VDC.Current consumption: 50mA maximum per digit.Construction: Metal enclosure, black powder coated finish with transparent red acrylic front.DSP104B Dimensions: 11" x 4.5" x 2.5".

Documentation

Cutsheet
