Presentation Timer w/ Large LED Display (alzm08b)

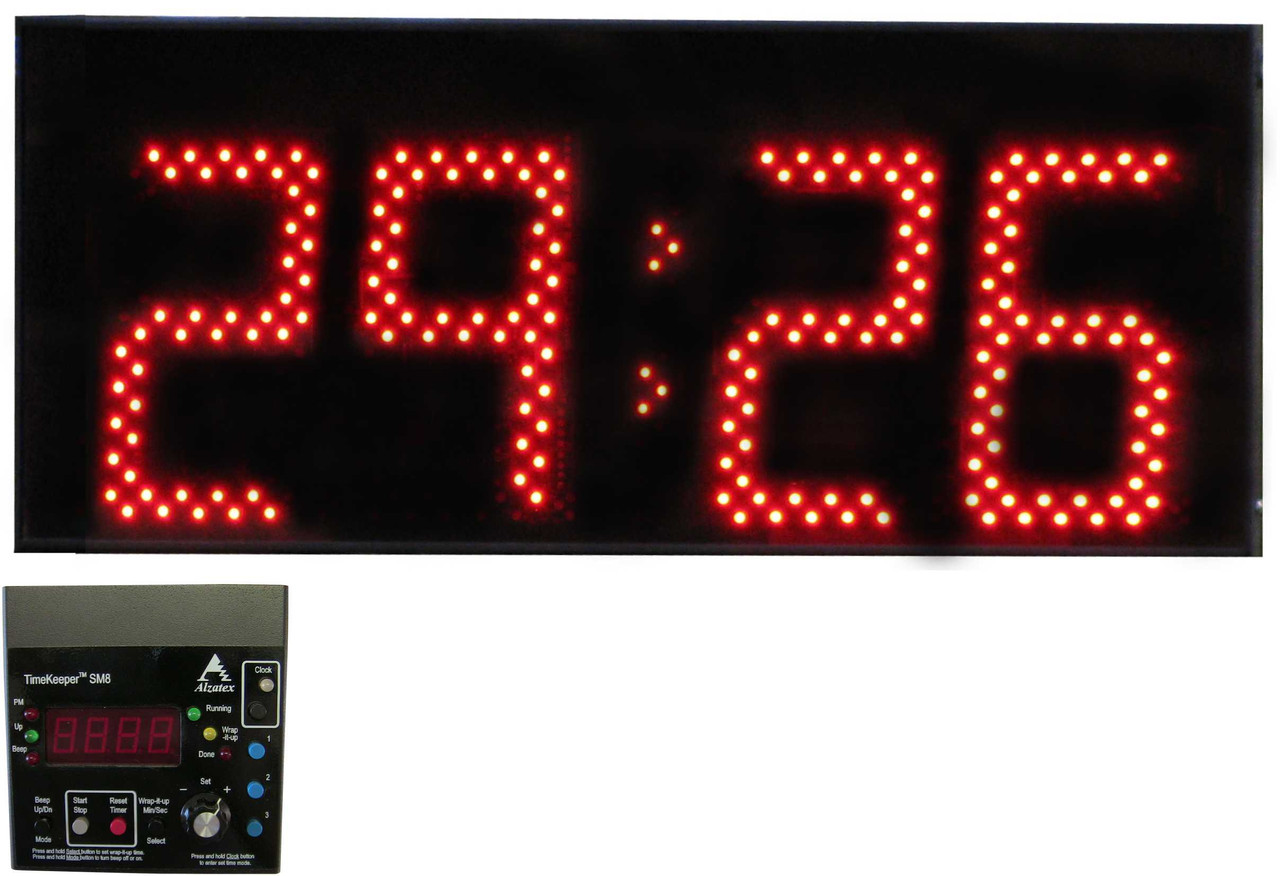

This presentation TimeKeeper™ system includes a TMR223B Count Up/Down Timer with six programmable presets, and a DSP704B Large Four-digit LED wall Display visible (up to 200ft) to the speaker and the audience.

Features

Count up elapsed timer settable to Hour:Min or Min:Sec.Count down time remaining timer settable to Hour:Min or Min:Sec.Easy to use. Press Reset. Turn knob to set the desired time. Press Start.Subsequent timing cycles. Press Reset. The time previously used will be loaded. Press Start.Green, Yellow and Red warning indicators have preprogrammed settings to match Toastmasters requirements, or may be programmed by user.Four-digit LED seven-segment Display with 0.56" high digits.Beeper provides audible sound when timer reaches zero.Button to turn beeper on/off.Built in Time of day clock displays 12 or 24 hour mode.Connect two or more TimeKeepers™ together. One becomes the timer, and the others become remote displays.Made of ruggedized aluminum construction.

Specifications

Two Serial data RJ11 connectors for accessories.One RS422 output with RJ45 connector for accessories.Ground closure 600mA output for optional beeper. (not included).Timer Construction: Metal enclosure, black powder coated finish.Display Construction: Metal enclosure, black powder coated finish.Power requirements: 10-18 VAC or 12-24 VDC power.Current consumption: 900ma.TMR223B Dimensions: 5.75" x 4.5" x 1.25".DSP704B Dimensions: 25.5" x 10.5" x 2.5".

Documentation

Cutsheet
