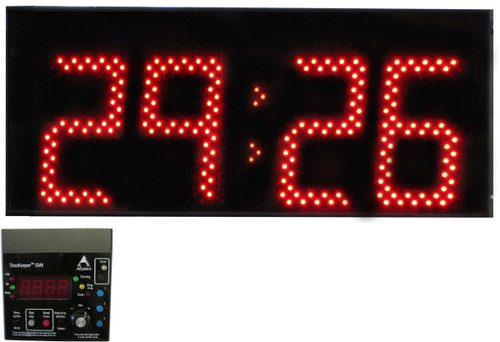

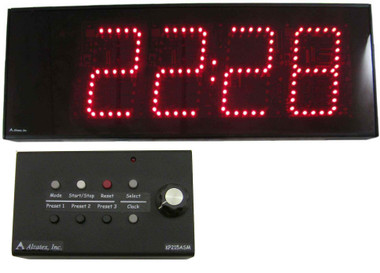

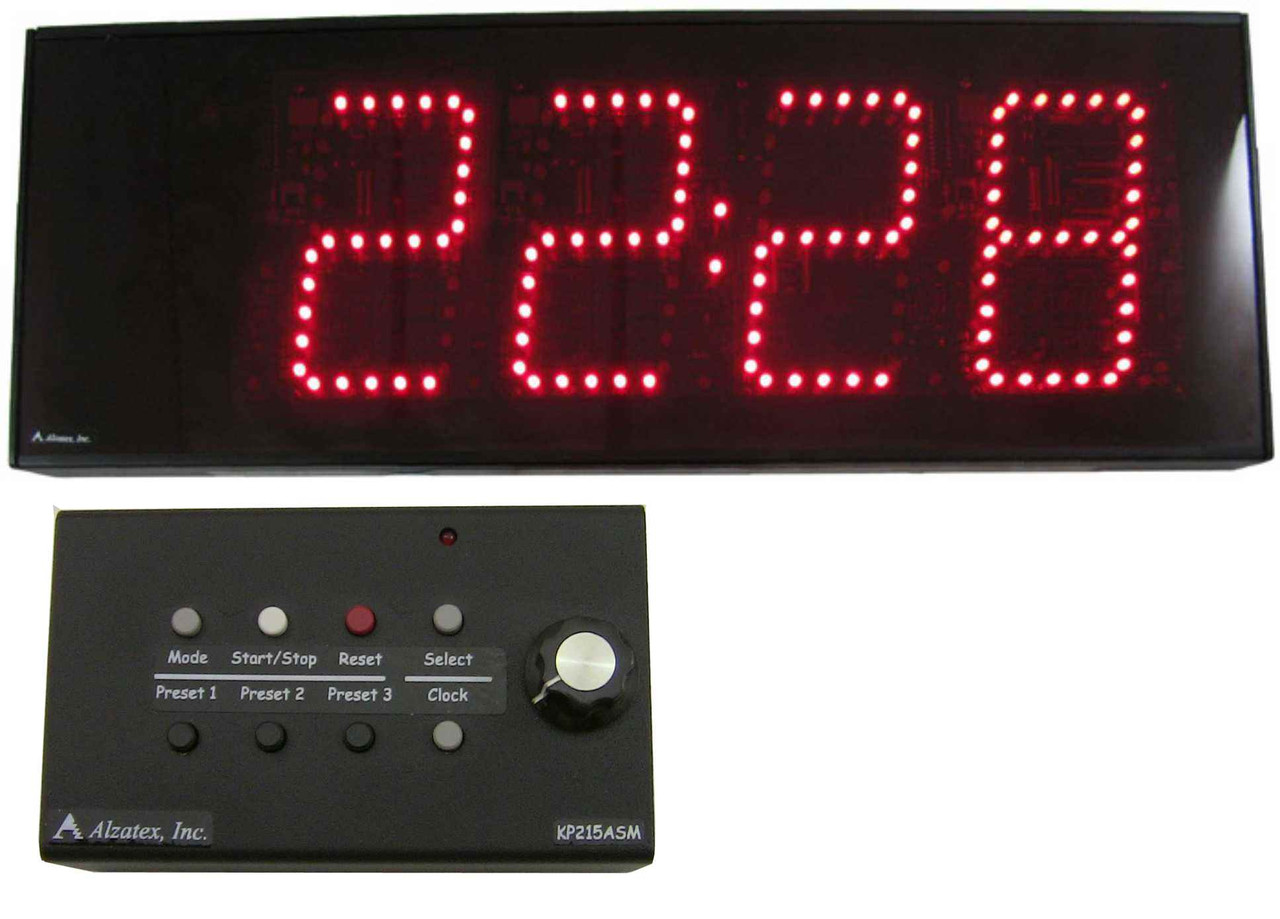

This presentation TimeKeeper system includes a KP215ASM Count Up/Down Timer with three programmable presets, and a DSP504B Large Four-digit LED wall Display visible (up to 100ft) to the speaker and the audience.
Features
Count up elapsed timer settable to Hour:Min or Min:Sec.Count down time remaining timer settable to Hour:Min or Min:Sec.Easy to use. Press Reset. Turn knob to set the desired time. Press Start.Subsequent timing cycles. Press Reset. The time previously used will be loaded. Press Start.Green, Yellow and Red warning indicators have preprogrammed settings to match Toastmasters requirements, or may be programmed by user.Four-digit LED seven-segment Display with 0.56" high digits.Beeper provides audible sound when timer reaches zero.Button to turn beeper on/off.Built in Time of day clock displays 12 or 24 hour mode.Connect two or more TimeKeepers together. One becomes the timer, and the others become remote displays.Made of ruggedized aluminum construction.
Specifications
Two Serial data RJ11 connectors for accessories.One RS422 output with RJ45 connector for accessories.Ground closure 600mA output for optional beeper. (not included).Timer Construction: Metal enclosure, black powder coated finish.Display Construction: Metal enclosure, black powder coated finish.Power requirements: 10-18 VAC or 12-24 VDC power.Current consumption: 500ma.KP215ASM Dimensions: 2.85" x 1.8" x 1.32".DSP504B Dimensions: 21.5" x 8" x 2.5".
Mounting methods
Standard mounting is 2 key hole slots spaced 16inch apart for wall mounting.There are screws at either end of the displays where D-Rings can be added. D-Rings are NOT included and may be ordered separately.1/4-20 nuts on the bottom of the unit for attaching a tripod adapter or feet. The feet and tripod adapter is NOT included and may be ordered separately.The display has holes in the top for adding a handle. The handle is NOT included and may be ordered separately.
Documentation
Cutsheet
