Presentation Timer w/ Large LED Display (alzm07b)

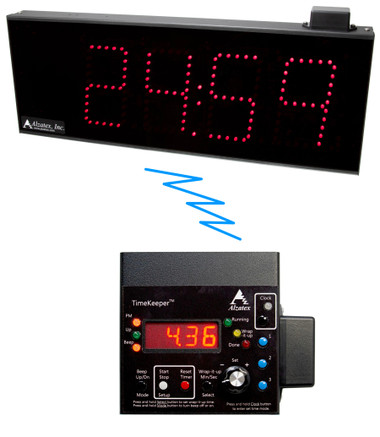

This wireless presentation TimeKeeper™ system includes a TMR216B_RF2 Count Up/Down Timer with multiple programmable presets, and a DSP504B Large Four-digit LED wall Display visible (up to 100ft) to the speaker and the audience.

Features

• Keypad has 18 buttons and a knob.
• Programmable buttons to perform a variety of functions.
• Factory programmed to fit your application.
• Serial data output to send commands to a remote Display, Timer or other device.
• Serial data input to permit daisy chaining multiple keypads/controllers.
• Battery operation or AC power.
• Count up elapsed timer settable to Hour:Min or Min:Sec.
• Count down time remaining timer settable to Hour:Min or Min:Sec.
• Easy to use. Press Reset. Turn knob to set the desired time. Press Start.
• Subsequent timing cycles. Press Reset. The time previously used will be loaded. Press Start.
• Green, Yellow and Red warning indicators have preprogrammed settings to match Toastmasters requirements, or may be programmed by user.
• Six-digit LED fourteen-segment alphanumeric Display with 0.54 inch high digits
• Beeper provides audible sound when timer reaches zero.
• Button to turn beeper on/off.
• Connect two or more TimeKeepers™ together. One becomes the Timer, and the others become remote Displays.
• Made of ruggedized aluminum construction.

Specifications

• Two Serial data RJ45 connectors for accessories.
• One RS422 output with RJ45 connector for accessories.
• Ground closure 600mA output for optional beeper. (not included).
• Timer Construction: Metal enclosure, black powder coated finish.
• Display Construction: Metal enclosure, black powder coated finish.
• Power requirements: 10-18 VAC or 12-24 VDC power.
• Current consumption: 500ma.
• TMR216B_RF2 Dimensions: 9.5" x 4.625" x 2.5".
• DSP504B Dimensions: 21.5" x 8" x 2.5".

• Standard mounting is 2 key hole slots spaced 16 inches apart for wall mounting.
• There are screws at either end of the displays where D-Rings can be added. D-Rings are NOT included and may be ordered separately.
• 1/4-20 nuts on the bottom of the unit for attaching a tripod adapter or feet. The feet and tripod adapter is NOT included and may be ordered separately.
• The display has holes in the top for adding a handle. The handle is NOT included and may be ordered separately.
