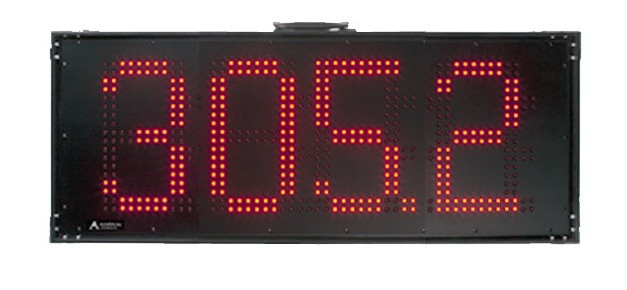

Four-digit Race Clock with 15" high super bright red LED digits for sporting events, with handle, feet, water resistant enclosure, metal frame. Includes integrated keypad, connection cable and power supply.
Features
Four-digit count up timer settable to Day:Hour, Hour:Min, Min:Sec or Sec.Hundredths.Four-digit count down timer settable to Day:Hour, Hour:Min or Min:Sec.
Features with external keypad
Built-in time-of-day clock displays hours/minutes in 12/24 hour time or minutes/seconds.Connect two or more TimeKeepers™ together. One becomes the timer and the others become Remotes.Can be powered from DC power or from external 12V battery (see Options).
Specifications
Two RJ45 modular connectors for RS422 serial data transmission and reception.Power connector (2.1x5.5mm).Test button for testing and configuration.Integrated KP215ASM keypad for operationConnector for optional external battery (see Options).Power requirements: 10-15VAC or 12-20VDC.Current consumption: 640mA maximum per digit.Construction: ABS Plastic enclosure with black powder coated metal front.
Documentation
Cutsheet
