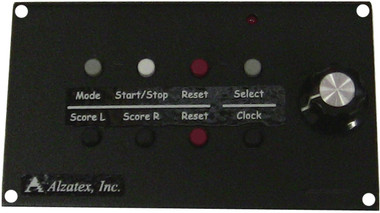

Remote Plate, 8 BTNS, KNOB, RJ45, Flush (kp215afm)

Remote control module with 8 buttons and a knob with RJ45 jacks on a flush mount plate.

Features

Keypad has 8 buttons and a knob.

Programmable buttons to perform a variety of functions.

Factory programmed to fit your application.

Serial data output to send commands to a remote display, Timer or other device.

Serial data input to permit daisy chaining multiple keypads/controllers.

Specifications

RJ45 connector Receives RS422 data.

RJ45 connector transmits RS422 data.

Power over CAT-5 cable.

Two Optically isolated inputs for Programmable functions.

Optically isolated inputs operate on a 6 to 24VDC signal.

Construction: Metal flush mount plate, black powder coated finish.

Power requirements: 6-15VAC or 8-20VDC.

Current consumption: 35ma.
