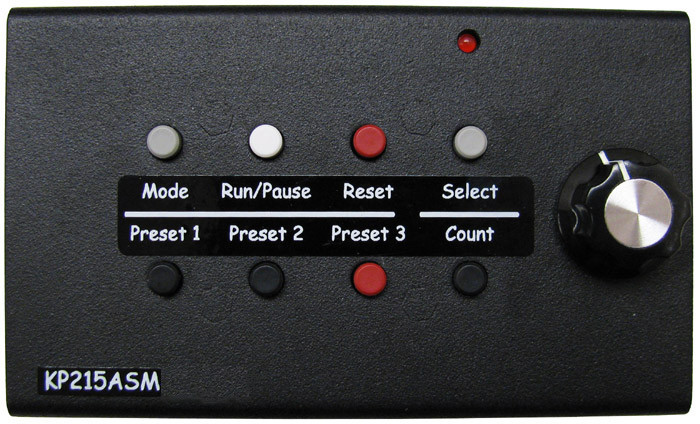

Handheld Remote keypad w/knob (kp215asm_2oc)

Remote control module with 8 buttons, 2 optically-isolated inputs and a knob with RJ45 jacks in a metal enclosure.

Features

Keypad has 8 buttons and a knob.Programmable buttons to perform a variety of functions.Factory programmed to fit your application.Serial data output to send commands to a remote display, Timer or other device.Serial data input to permit daisy chaining multiple keypads/controllers.

Specifications

RJ45 connector Receives RS422 data.RJ45 connector transmits RS422 data.Power over CAT-5 cable.Two Optically isolated inputs for Programmable functions.Optically isolated inputs operate on a 6 to 24VDC signal.Power requirements: 6-15VAC or 8-20VDC.Current consumption: 35ma.Construction: Metal enclosure, black powder coated finish.

Documentation

Cutsheet
