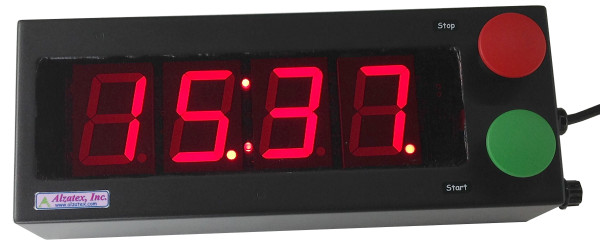

Four-Digit Display, 2-1/3" High Digits, Solid-Segments, Integrated Up/Count Down Timer with 2 Large Mushroom Buttons 6 button keypad and a Knob in NEMA4X Enclosure.
Features
Four-digit count up timer settable to Day:Hour, Hour:Min, Min:Sec or Sec.Hundredths.Four-digit count down timer settable to Day:Hour, Hour:Min or Min:Sec.
Specifications
One Optically coupled input resets and starts the timer.One Optically coupled input stops the timer.Two RJ45 modular connectors for RS422 serial data transmission and reception.Power connector (2.1x5.5mm).Test button for testing and configuration.Power requirements: 10-15VAC or 12-20VDC.Current consumption: 500mA max.Construction: Metal enclosure, black powder coated finish with transparent red acrylic front.DSP264BD Dimensions: 13" x 5" x 3".Mounting flanges add 0.75" on either end. Total length is 14.5".
Documentation
Cutsheet
