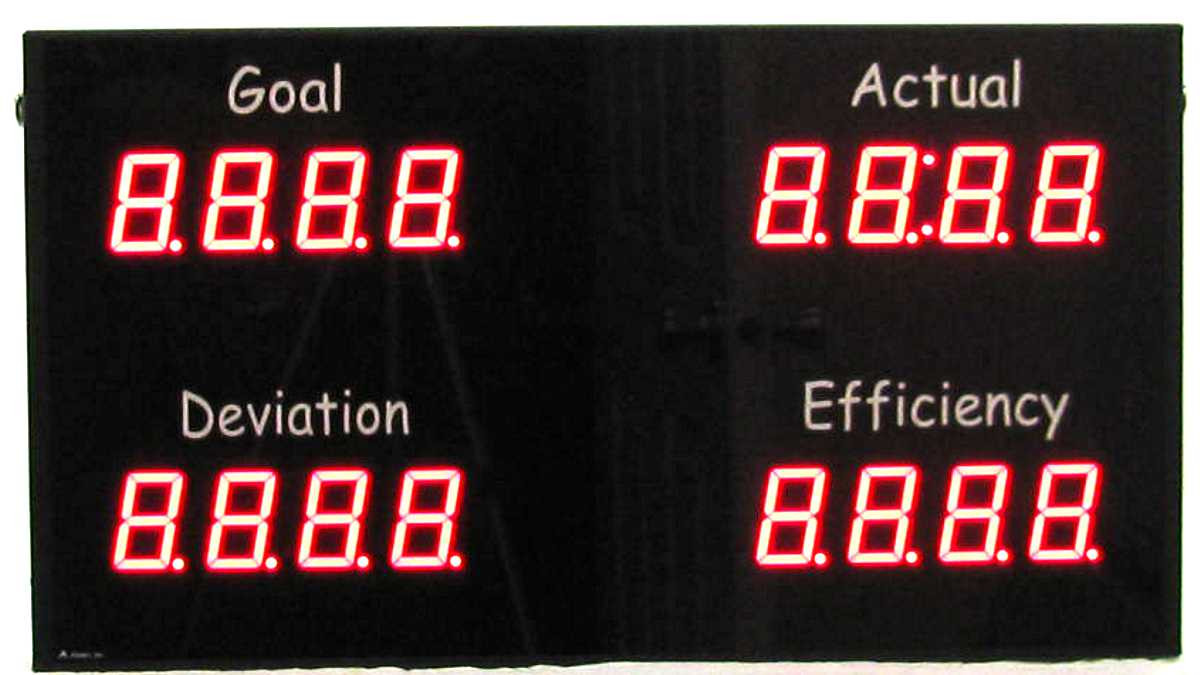

Quad Four-Digit Display, 2-1/3" High Digits, Solid-Segments, Metal Frame.
Features
Count Up Timer with ground closure inputs or optional Start, Stop and Reset buttons.Digital Counter with ground closure inputs or optional Next (Increment), Previous (Decrement) and Reset buttons.Connect two or more TimeKeepers™ together. One becomes the timer, and the others become remote displays.Four-digit count up timer settable to Day:Hour, Hour:Min, Min:Sec or Sec.Hundredths.Four-digit count down timer settable to Day:Hour, Hour:Min or Min:Sec.
Specifications
One RJ45 modular connector for RS422 serial data transmission and reception.One RJ11 modular connector for accessories.Power connector (2.1x5.5mm).Test button for testing and configuration.Power requirements: 10-15VAC or 12-20VDC.Current consumption: 80mA maximum per digit.Construction: Metal enclosure, black powder coated finish with transparent red acrylic front.Quad DSP254B displays in a common enclosure.DSP254X4B Dimensions: 27" x 15" x 2.5".
Documentation
Cutsheet
