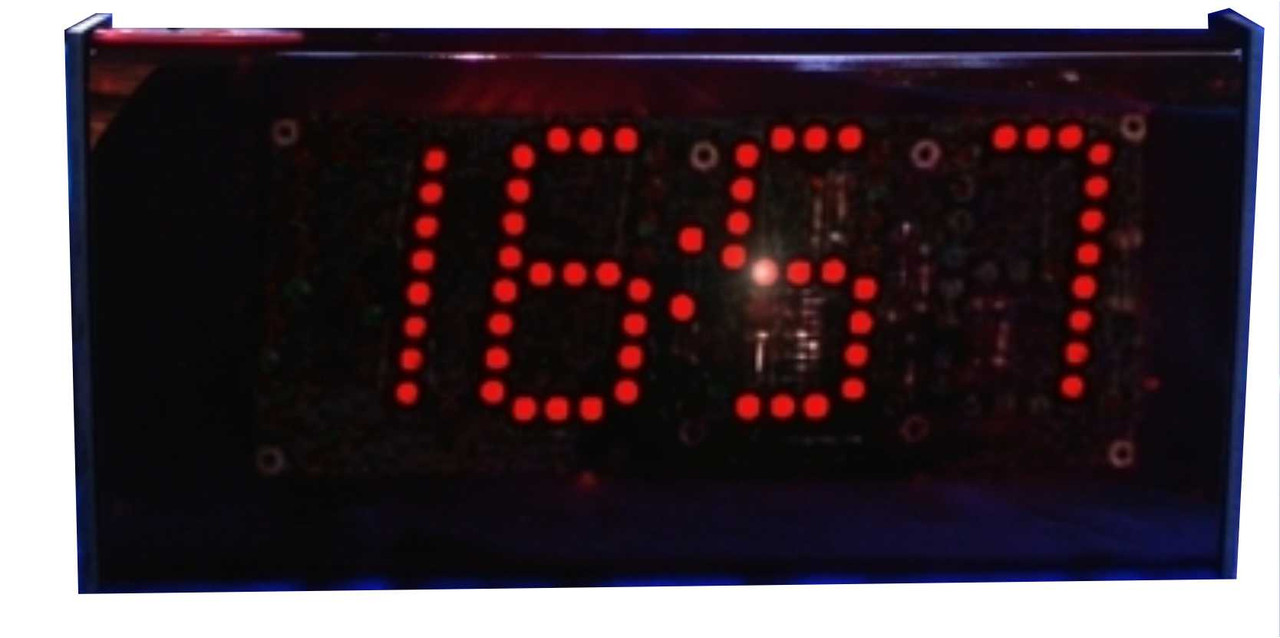

Display with 2.5" high LED digits (dsp204b5)

Four-Digit Display, 2.5" High Digits, Red LEDs, Time-of-Day Clock, Metal Enclosure - Power Supply not Included.

Features

Built-in time-of-day clock displays hours/minutes in 12/24 hour time or minutes/seconds.Connect two or more TimeKeepers™ together. One becomes the timer, and the others become remote displays.Four-digit count up timer settable to Day:Hour, Hour:Min, Min:Sec or Sec.Hundredths.Four-digit count down timer settable to Day:Hour, Hour:Min or Min:Sec.

Features with optional keypad

Count Up Timer.Count Down Timer. (0 to 99.59 MM:SS or 0 to 99:59:59 HH:MM:SS).User-programmable stored settings.Built-in time-of-day clock displays hours/minutes in 12/24 hour time or minutes/seconds.Button to turn beeper on/off.

Specifications

Two RJ45 modular connectors for RS422 serial data transmission and reception.Ground closure inputs to remotely start, stop or reset the timer.Solder connections for an optional loud beeper.Optional SPDT Beep relay output.Power connector (2.1x5.5mm).Test button for testing and configuration.Power requirements: 10-15VAC or 12-20VDC.Current consumption: 150mA maximum per digit.Construction: Metal enclosure, black powder coated finish with transparent red acrylic front.

Documentation

Cutsheet
