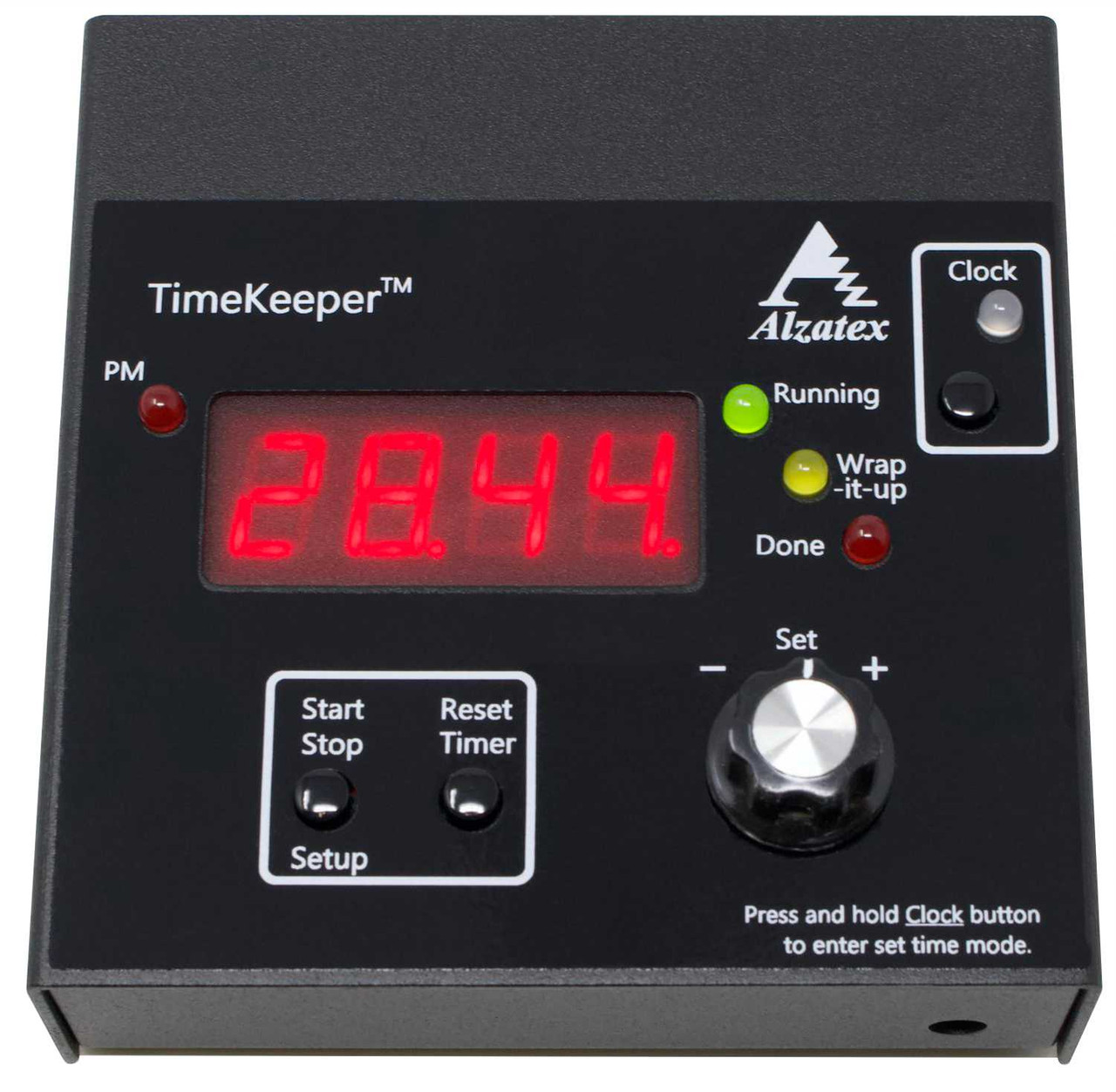

This presentation TimeKeeper system includes a Count Up/Down Timer, optional RYG11A Red-Yellow-Green LED Display that is visible to the speaker and the audience.
Features
Count up elapsed timer settable to Hour:Min or Min:Sec.Count down time remaining timer settable to Hour:Min or Min:Sec.Easy to use. Press Reset. Turn knob to set the desired time. Press Start.Subsequent timing cycles. Press Reset. The time previously used will be loaded. Press Start.Green, Yellow and Red warning indicators have preprogrammed settings to match Toastmasters requirements, or may be programmed by user.Four-digit LED seven-segment Display with 0.56" high digits.Beeper provides audible sound when timer reaches zero.Button to turn beeper on/off.Connect two or more TimeKeepers together. One becomes the timer, and the others become remote displays.Made of ruggedized aluminum construction.
Specifications
Two Serial data RJ11 connectors for accessories.One RS422 output with RJ45 connector for accessories.Ground closure 600mA output for optional beeper. (not included).Timer Construction: Metal enclosure, black powder coated finish.Display Construction: ABS Plastic enclosure, black.Power requirements: 10-18 VAC or 12-24 VDC power.Current consumption: 100ma.TMR017B4_SM Dimensions: 4.5" x 2.75" x 1.75".TMR223B3_SM Dimensions: 4.5" x 4.5" x 1.5".RYG11ABBK Dimensions: 5.63" x 3.25" x 1.5".
Documentation
Cutsheet
