Digital LED TAKE-A-NUMBER Display,5IN (dsp505b_nsw)

Hover over image to zoom

  • Image 1
$560.00
SKU:
dsp505b_nsw
Weight:
6.20 LBS
Availability:
Usually in stock.
Shipping:
Calculated at checkout

 Product Description

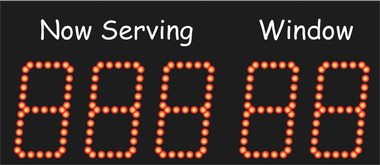

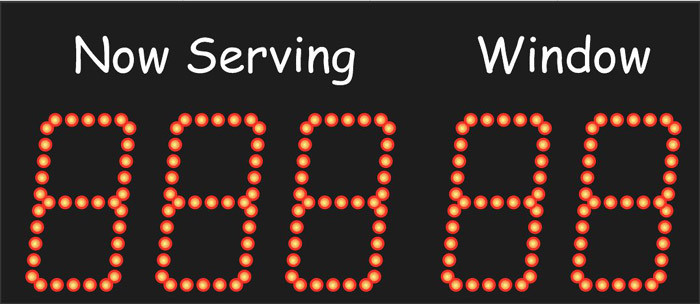

5-digit Take-A-Number Display, 5" High Digits, Red LEDs, Metal Frame, "Now Serving" and "Window" Labels.

Specifications

    Two RJ45 modular connectors for RS422 serial data transmission and reception.
    Two RJ11 modular connectors for accessories.
    RJ11 modular connector for remote Start, Stop and Reset inputs.
    Power connector (2.1x5.5mm).
    Test button for testing and configuration.
    Power requirements: 10-15VAC or 12-20VDC.
    Current consumption: 100mA maximum per digit.
    Construction: Metal enclosure, black powder coated finish with transparent red acrylic front.

Mounting methods

    Standard mounting is 2 key hole slots spaced 16 inches apart for wall mounting. There are screws at either end of the displays where D-Rings can be added. D-Rings are NOT included and may be ordered separately. 1/4-20 nuts on the bottom of the unit for attaching a tripod adapter or feet. The feet and tripod adapter is NOT included and may be ordered separately. The display has holes in the top for adding a handle. The handle is NOT included and may be ordered separately.

Documentation

Cutsheet


 Warranty Information

One year warranty included. Extended warranties available; details in options.
