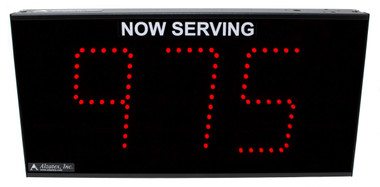

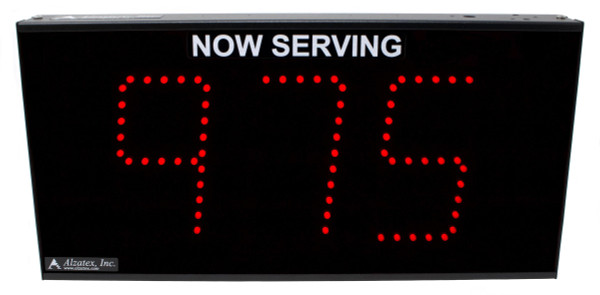

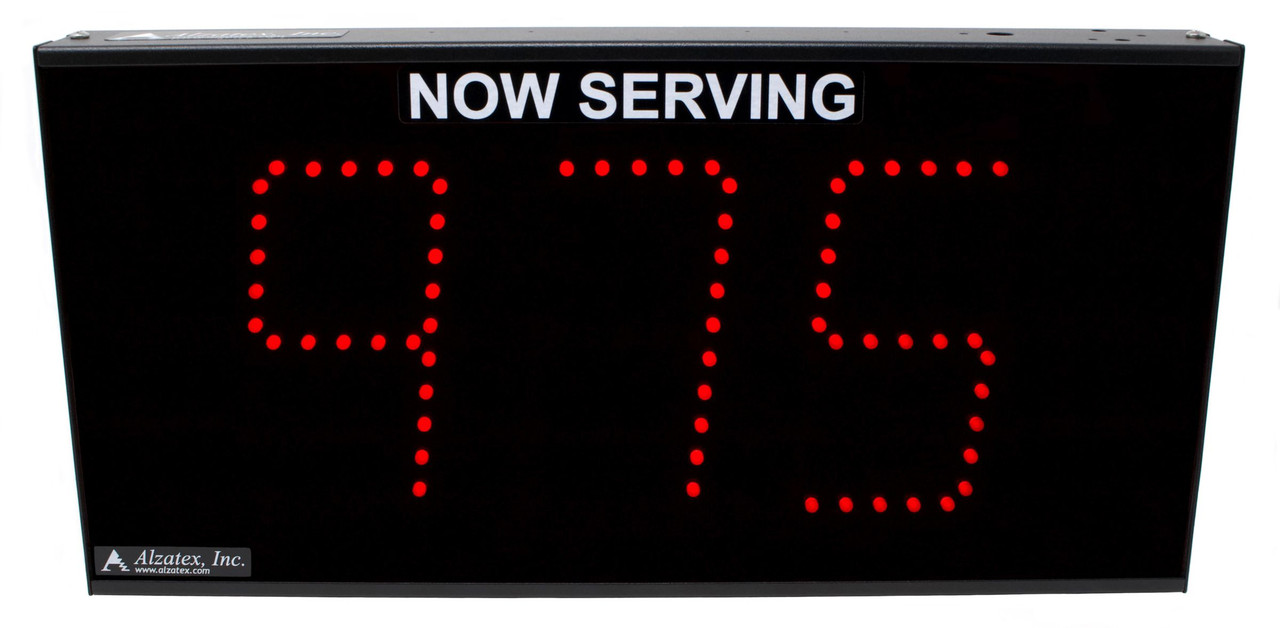

Digital LED TAKE-A-NUMBER Display 5IN (dsp503b_ns)

Three-Digit Take-A-Number Display, 5" High Digits, Red LEDs, Metal Frame, "Now Serving" Label.

Features

Three-digit Take-a-Number Display with 5" high red LED digits.

Specifications

Two RJ45 modular connectors for RS422 serial data transmission and reception.RJ11 modular connector for remote Start, Stop and Reset inputs.Power connector (2.1x5.5mm).Test button for testing and configuration.Power requirements: 10-15VAC or 12-20VDC.Current consumption: 100mA maximum per digit.Construction: Metal enclosure, black powder coated finish with transparent red acrylic front.

Documentation

Cutsheet
