Digital LED TAKE-A-NUMBER Display,5IN (dsp504b_ns)

Hover over image to zoom

  • Image 1
5.90 LBS
Usually in stock.
Calculated at checkout

 Product Description

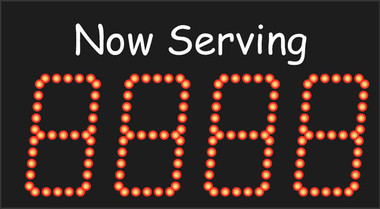

Four-Digit Take-A-Number Display, 5 inch High Digits, Red LEDs, Metal Frame, "Now Serving" Label.



    • Two RJ45 modular connectors for RS422 serial data transmission and reception.
    • Two RJ11 modular connectors for accessories.
    • RJ11 modular connector for remote Start, Stop and Reset inputs.
    • Power connector (2.1x5.5mm).
    • Test button for testing and configuration.
    • Power requirements: 10-15VAC or 12-20VDC.
    • Current consumption: 100mA maximum per digit.
    • Construction: Metal enclosure, black powder coated finish with transparent red acrylic front.
    • Standard mounting is 2 key hole slots spaced 16 inches apart for wall mounting.
    • There are screws at either end of the displays where D-Rings can be added. D-Rings are NOT included and may be ordered separately.
    • 1/4-20 nuts on the bottom of the unit for attaching a tripod adapter or feet. The feet and tripod adapter is NOT included and may be ordered separately.
    • The display has holes in the top for adding a handle. The handle is NOT included and may be ordered separately.


 Warranty Information

One year warranty included. Extended warranties available; details in options.
