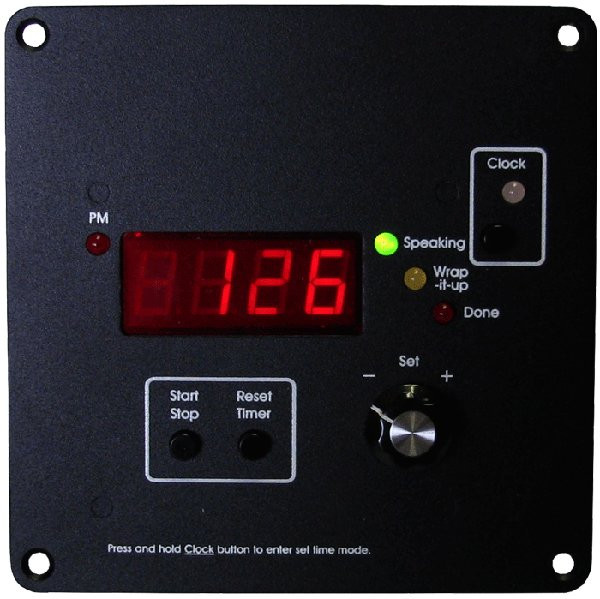

Flush-mount Count Down Timer with time-of-day clock, 4-digit LED Display and Red-Yellow-Green LEDs.
Features
Easy to use. Press Reset. Turn knob to set the desired time. Press Start.Subsequent timing cycles. Press Reset. The time previously used will be loaded. Press Start.Count Down time remaining Timer.0-99.59 MM:SS or 0-99:59 HH:MM.User-programmable Green, Yellow and Red warning Indicators.The Select button selects between setting hours, minutes and seconds.Four-digit LED seven-segment Display with 0.56" high digits.Connect two or more TimeKeepers together. One becomes the timer, and the others become remote displays.Four-digit count down timer settable to Min:Sec.Made of ruggedized aluminum construction.
Specifications
Two RJ45 modular connectors for accessories.May be powered using 3-AA batteries or AC power.Ground closure 200mA output for optional beeper. (not included).Construction: Metal enclosure, black powder coated finish.Power requirements: 10-18 VAC or 12-24 VDC power.Current consumption: 100ma.
Documentation
Cutsheet
