Wireless Clock/Timer 6 Digits (tmr216b_rf9)

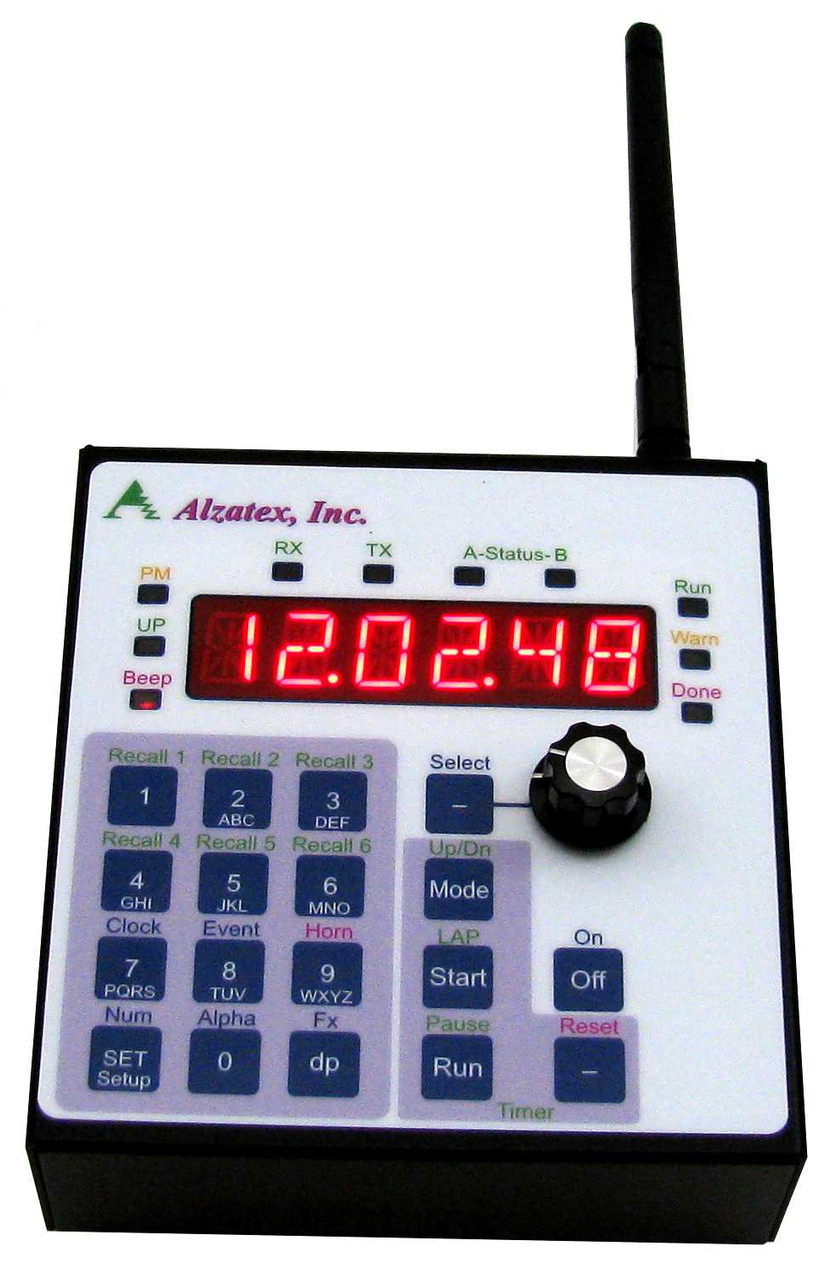

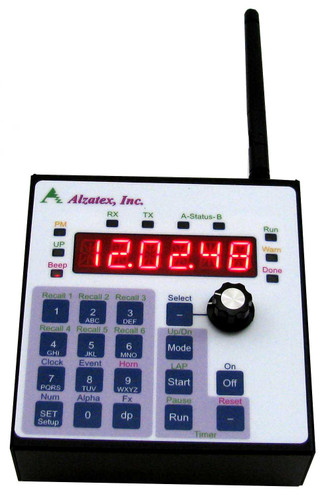

Wireless Surface-mount Count Up/Down Timer with time-of-day clock, six-digit LED Display, 6 stored presets, and Red-Yellow-Green LEDs.

Features

Convenience is important to most people. This gives you an advantage as Alzatex products are easy to use. The real benefit to you is a very quick learning curve. Six-digit LED fourteen-segment alphanumeric Display with 0.54" high digits. Connect two or more TimeKeepers™ together. One becomes the timer, and the others become remote displays. Six-digit count up timer settable to Day:Hour:Min, Hour:Min:Sec, or Min:Sec:Hundredths. Six-digit count down timer settable to Day:Hour:Min, Hour:Min:Sec. Made of ruggedized aluminum construction. Count Up Timer. Count Down Timer. (0 to 99.59 MM:SS or 0 to 99:59:59 HH:MM:SS). User-programmable green, yellow and red warning indicators. Internal beeper provides audible sound when the timer reaches zero. Button to turn beeper on/off. Up to 6 user-programmable stored settings. Built-in time-of-day clock displays hours/minutes in 12/24-hour time or minutes/seconds.

Specifications

900MHz RF Wireless communications interface. Two RJ45 modular connectors for RS422 serial data transmission and reception. Solder terminals for optional loud beeper. Construction: Metal enclosure, black powder coated finish. Power requirements: 10-13VAC or 12-15VDC. Current consumption: 100mA.

Documentation

Cutsheet
