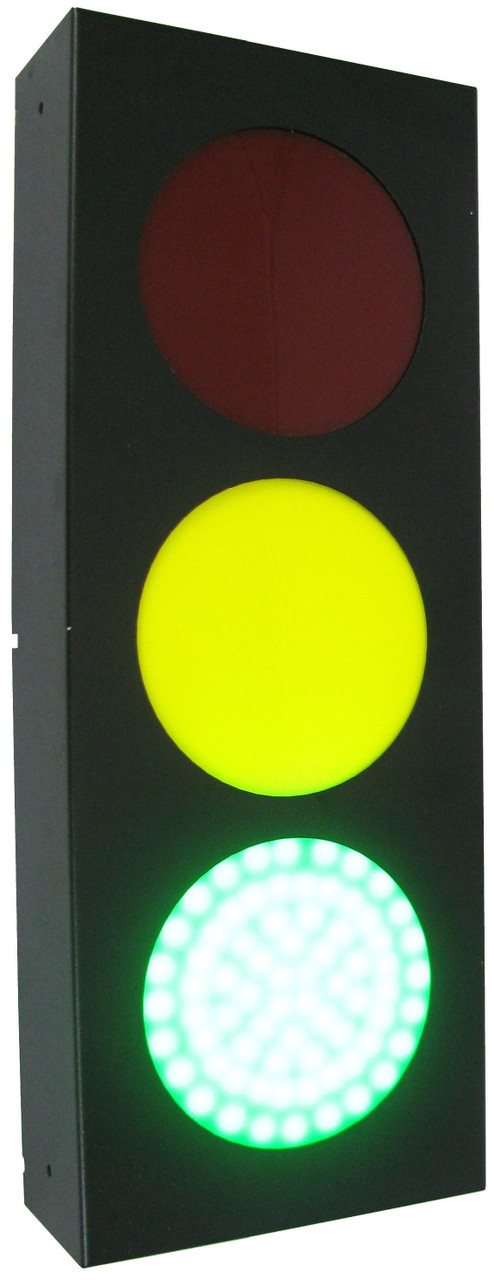

Red-Yellow-Green signal lights 4" (ryg400a)

Large Red-Yellow-Green unit with 4" diameter round 72 LED arrays. (Metal Enclosure).

Features

Red-Yellow-Green Audience signal lights.Works with The TimeKeeper™, Alzatex, Inc.’s zero to 99.59 minute Count Up/Down Timers.May be powered using AC or DC power.Low power consumption.Includes optional built-in internal beeper. The Count Up/Down TimeKeeper™ can enable or disable the beeper.Green-Talk; Yellow-Wrap it up; Red-Done LED Indicators.The Wall Mount or portable Red-Yellow-Green Indicator is available with black or OAK enclosure.Audio output (2 watt) for a speaker, that will generate user-programmable audible tones.

Specifications

RJ45 modular connector for RS422 serial data input.RJ11 modular connectors for serial data input.Ground closure inputs to manually operate the Green, Yellow, Red Indicators and the beeper.Power connector (2.1x5.5mm).Test button for testing and configuration.Screw terminal connector for loud beeper.Screw terminal connector for 8 ohm speaker.Construction: Metal enclosure, black powder coated finish.Power requirements: 10-13VAC or 12-15VDC.Current consumption: 450mA.

Documentation

Cutsheet
