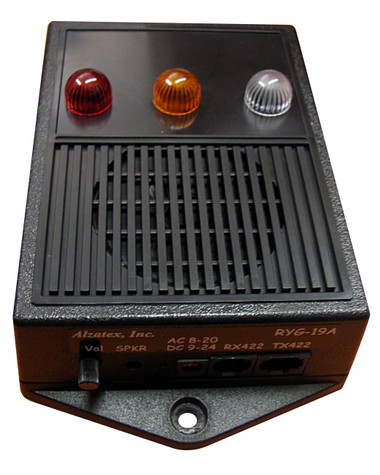

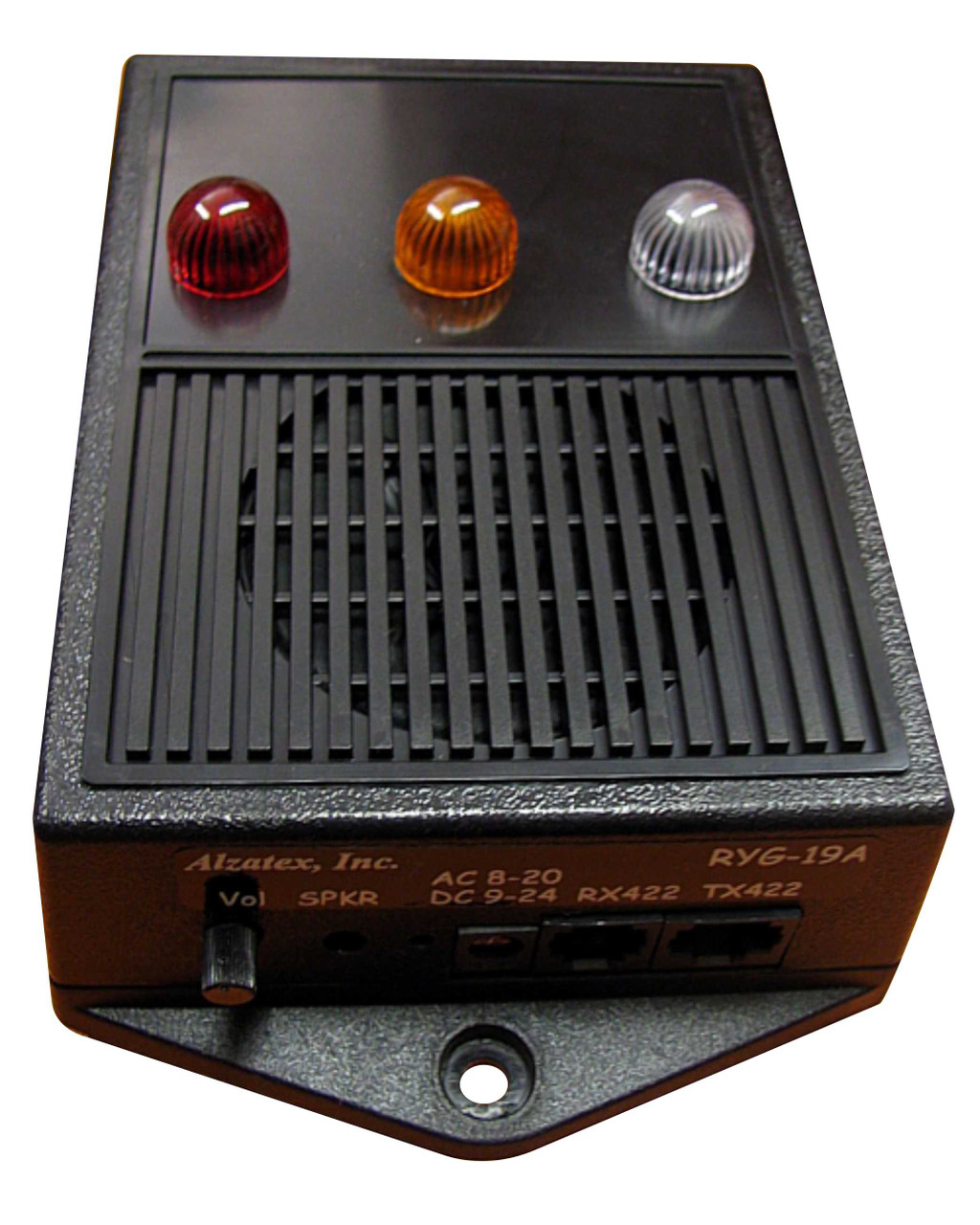

Red-Yellow-Green Lamps, Prog. Beep Tones (ryg19abbk)

Wall Mount top Red-Yellow-Green Indicator unit, 1/2" diameter dome LEDs with programmable beep tones, and built in speaker and volume control. (Black ABS plastic enclosure).

Features

Wall mount Red-Yellow-Green Indicator with built in speaker to generate user-programmable beep tones.Red-Yellow-Green Audience signal lights.Works with The TimeKeeper™, Alzatex, Inc.’s zero to 99.59 minute Count Up/Down Timers.May be powered using AC or DC power.Low power consumption.Optional built-in internal beeper. The Count Up/Down TimeKeeper™ can enable or disable the beeper.Green-Talk; Yellow-Wrap it up; Red-Done LED Indicators.Built-in speaker and volume control that will generate user-programmable audible tones.Audio output (2 watt) for an external speaker.

Specifications

RJ45 modular connector for RS422 serial data input.RJ11 modular connectors for serial data input.Power connector (2.1x5.5mm).Screw terminal connector for an optional loud beeper.Screw terminal connector for an external 8 ohm speaker.Construction: ABS plastic wall mount enclosure, black.Power requirements: 10-13VAC or 12-15VDC.Current consumption: 250mA.

Documentation

Cutsheet
