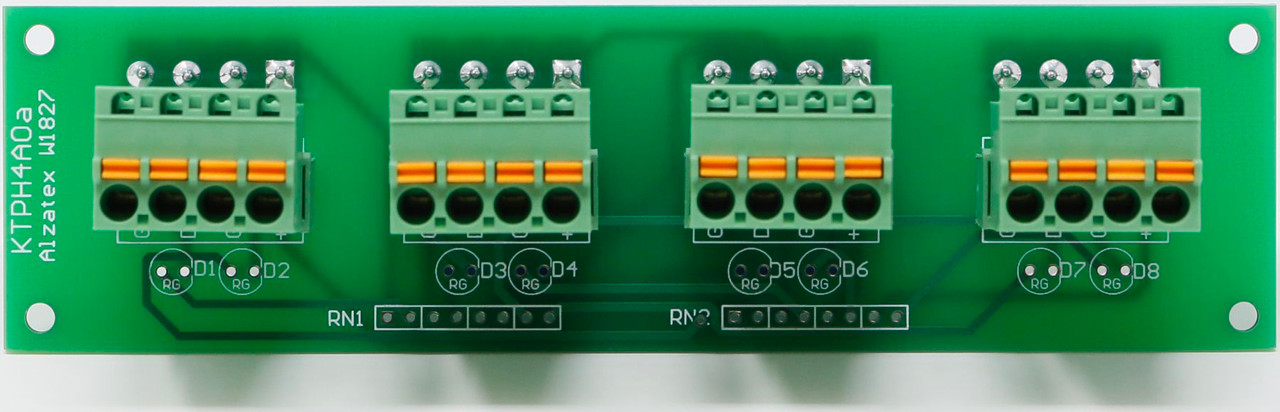

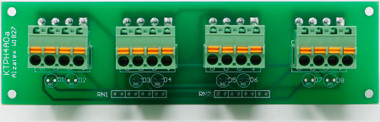

Speaker Patch Panel Block with 4 Phoenix Connect (ktph4a0)

Patch panel block with 4 four-pin Phoenix connectors. Each port supports four conductor 24GA to 12GA cable. Fits in the ktpp_rm1 patch panel chassis.

Features

Great for speaker connections or power connections.

4 four-pin interface ports with Phoenix connectors.

Phoenix screw terminal or quick-snap power/data interfaces.

Works with four conductor high current interface ports.

Each port can drive 12 amps per connection.

Specifications

Four 4-pin Phoenix plug in connectors on front.

Four 4-pin Screw terminal connectors on rear.

Wire gauge from 24GA up to 12GA.

Pitch 5.08mm.

Screw terminal connectors support up to 17 Amps on each pin.

Phoenix plug connectors support up to 12 Amps on each pin.

Rated operating voltage: 320V.

Documentation

Cutsheet
