Product Overview

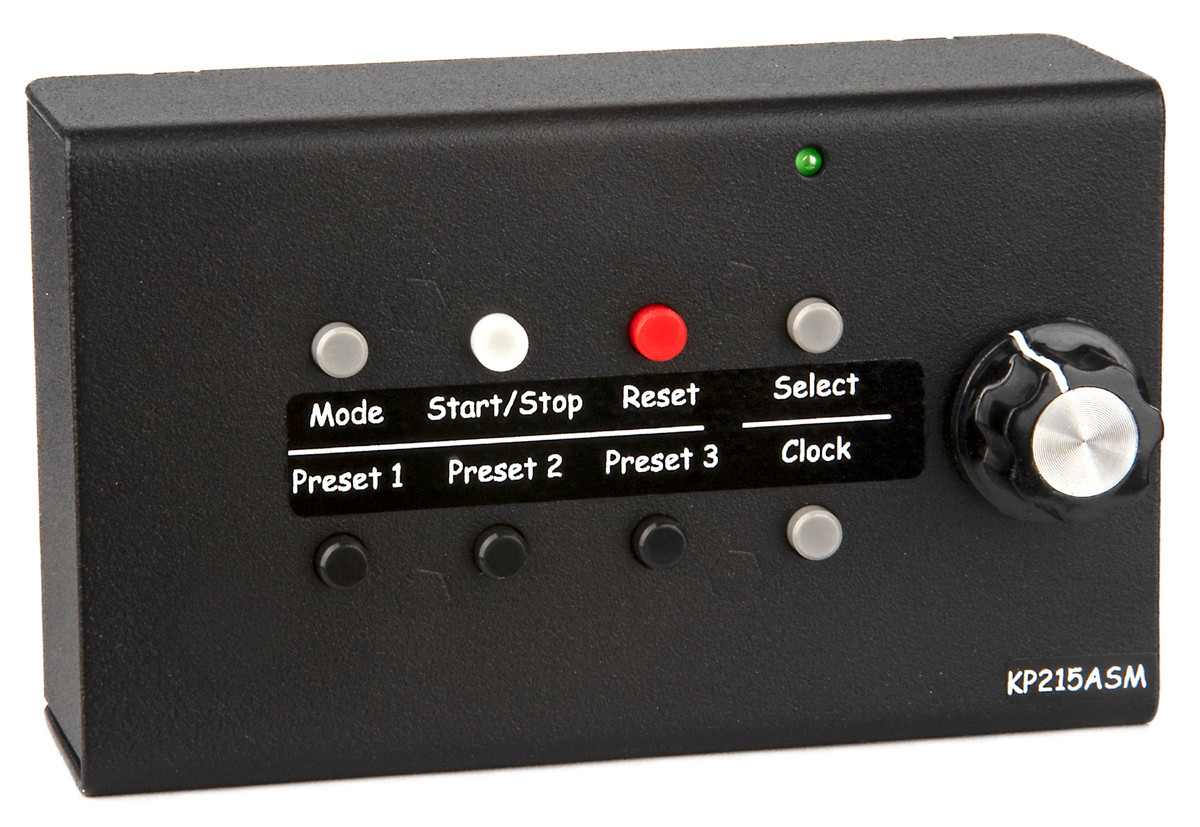

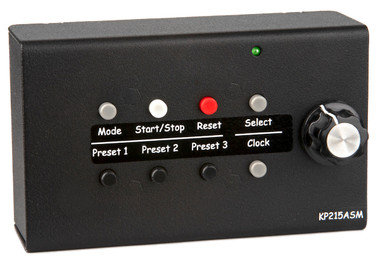

Remote control module with 8 buttons and a knob with RJ45 jacks in a metal enclosure.
Features
- Keypad has 8 buttons and a knob.Programmable buttons to perform a variety of functions.Factory programmed to fit your application.Serial data output to send commands to a remote display, Timer or other device.Serial data input to permit daisy chaining multiple keypads/controllers.
Specifications
- RJ45 connector Receives RS422 data.RJ45 connector transmits RS422 data.Power over CAT-5 cable.Power requirements: 6-15VAC or 8-20VDC.Current consumption: 35ma.Construction: Metal enclosure, black powder coated finish.
Documentation
Warranty Information
One year warranty included. Extended warranties available; details in options.
