Take-A-Number Button Input Module, 8 Win (kp210a_tat)

Multi-Window Take-a-Number button input module with RJ45 jacks permits connecting up to 8 now serving buttons in a metal enclosure programmed for the Take-a-Number system.

Features

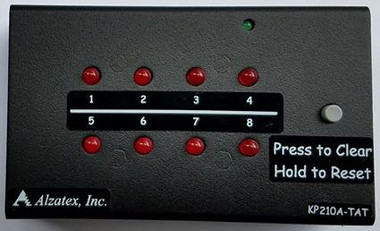

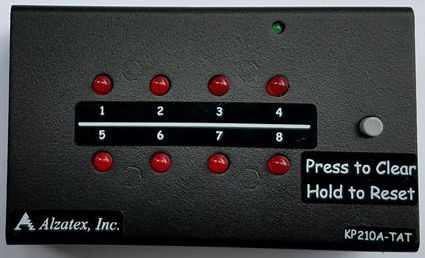

Keypad has 8 LEDs to indicate ground closure status and one button.

Programmable buttons to perform a variety of functions.

Factory programmed to fit your application.

Serial data output to send commands to a remote display, Timer or other device.

Serial data input to permit daisy chaining multiple keypads/controllers.

Specifications

RJ45 connector Receives RS422 data.

RJ45 connector transmits RS422 data.

Power over CAT-5 cable.

Power requirements: 6-15VAC or 8-20VDC.

Current consumption: 35ma.

Construction: Metal enclosure, black powder coated finish.

Documentation

Cutsheet
