Product Overview

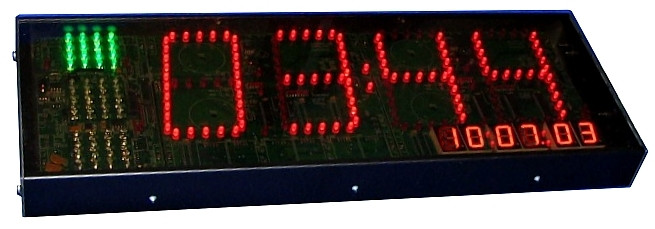

Four-Digit Display with 5" High Digits and Red LEDs, Six-Digit Display with 1" High Digits, 2" x 2" LED Clusters, in Common Metal Enclosure for Display of "Days Since Last Accident".
Features
- Four-digit Large 5" LED Display shows days since last accident.Six-digit Display with 1" high digits shows the time-of-day Clock in hours, minutes and seconds.Green-Yellow-Red Display with 2"x2" LED clusters shows severity of the most recent accident.Remote button plate to setup the time of day and the days since last accident.
Specifications
- Two RJ45 modular connectors for RS422 serial data transmission and reception.RJ11 modular connector for remote Start, Stop and Reset inputs.Power connector (2.1x5.5mm).Test button for testing and configuration.Power requirements: 10-15VAC or 12-20VDC.Current consumption: 100mA maximum per digit.Construction: Metal enclosure, black powder coated finish with transparent red acrylic front.
Mounting methods
- Standard mounting is 2 key hole slots spaced 16inch apart for wall mounting.There are screws at either end of the displays where D-Rings can be added. D-Rings are NOT included and may be ordered separately.1/4-20 nuts on the bottom of the unit for attaching a tripod adapter or feet. The feet and tripod adapter is NOT included and may be ordered separately.The display has holes in the top for adding a handle. The handle is NOT included and may be ordered separately.
